| Dual Window Coupler Test Report |
| |
| S/N: | 1507220001 |
| TESTING ENVIRONMENT: Temperature: 23℃±2℃. Relative Humidity:60%±10% |
| TYPE | FBT-1x2-SM-20/80-1310/1490/1550-1m-0.9-NC/NC |
| Test Wavelength | nm | 1270~1350&1510~1590 |
| OutPut | | 1310nm | 1550nm |
| Out1 | Out2 | Out1 | Out2 |
| Insertion Loss | dB | 7.67 | 1.27 | 7.67 | 1.36 |
| Coupling Ratio | % | 18.64% | 81.36% | 18.96% | 81.04% |
| PDL | dB | ≤0.15 |
| Directional | dB | ≥55 |
| Operating Temperature | ℃ | -20～+75 |
| Storage Temperature | ℃ | -40～+85 |
| fiber Length | m | 1 |
| Dimension | mm | Ф3.0×54 |
| Fiber Type | | Corning SMF-28e,9/125,900um |
| Connector | | NONE |

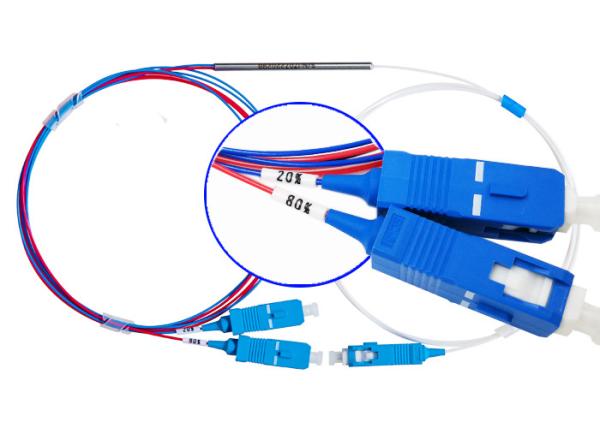

FBT 1×2 20/80 Coupler Fiber Optical WDM Mini 0.9 SC/UPC Non-uniform
Optical Power
Our company can only pull 1 × 4 or less at a time using the
parallel taper process. For 1 × 4 or more devices, multiple 1 × 2
devices are connected together. The whole is packaged in a splitter
box.
Fused tapered optical splitter bundles two or more optical fibers
together, then melts and stretches them on a tapered machine, and
monitors the change of the splitting ratio in real time. After the
splitting ratio reaches the requirements, it ends the melting and
stretching. The other fiber is used as the input end, and the other
end is used as the multiple output end.
Applications:
Fiber optic communication system
FTTX access network based on PON structure
Local loop and passive optical network (PON)
CATV network
LAN, WAN and MAN
Testing equipments
Features:
Broad Operating Band
High Channel Isolation
Low Insertion Loss
High Reliability and Stability
Specifications:
| Dual Window Coupler Test Report |
| |
| S/N: | 1507220001 |
| TESTING ENVIRONMENT: Temperature: 23℃±2℃. Relative Humidity:60%±10% |
| TYPE | FBT-1x2-SM-20/80-1310/1490/1550-1m-0.9-NC/NC |
| Test Wavelength | nm | 1270~1350&1510~1590 |
| OutPut | | 1310nm | 1550nm |
| Out1 | Out2 | Out1 | Out2 |
| Insertion Loss | dB | 7.67 | 1.27 | 7.67 | 1.36 |
| Coupling Ratio | % | 18.64% | 81.36% | 18.96% | 81.04% |
| PDL | dB | ≤0.15 |
| Directional | dB | ≥55 |
| Operating Temperature | ℃ | -20～+75 |
| Storage Temperature | ℃ | -40～+85 |
| fiber Length | m | 1 |
| Dimension | mm | Ф3.0×54 |
| Fiber Type | | Corning SMF-28e,9/125,900um |
| Connector | | NONE |
Our Services:
a. Professional manufacturer, 100% tested for more than 3 times.
b. Customers solutions in days, not weeks.
c. Warmly services with careful attentions.
d. Can provide your specific inquiry within 24 hours.
e. Save much cost, bring more benefits for customer to expand
business.
f. We have been 12 years experience in this field. We are the
professional supplier that you can trust.
