Non-metallic GYFTY Fiber Optic Armoured Cable G652D 12 24 30 48 Core PE HDPE G657A2

The center of GYFTY's optical cable is a glass fiber reinforced plastic (FRP). A loose tube (and a filling rope) is twisted around the center reinforcing core to form a compact and round cable core. The gap in the cable core is filled with a water blocking filler. The outer layer of the cable core is extruded with a polyethylene inner sheath to form a cable.

1 Cable design

• 48 SM-fibers
• G652 D operating wavelength at 1260~1625nm.
• FRP as central strength member.
• Loose buffer tubes SZ-stranded.
• The buffered tube filled with filling compound while the stranded core covered with water block material
• PE Cable inner sheath
• Aramid yarns as peripheral strength member
• PE Cable outer sheath(PE outer sheath is applied for the application in which cable is installed at the place where the spatial potential ≤12KV)
• Suitable as: Aerial installation (Span:400m)

2 Reference Standard

IEC 60793-1, 60793-2, 60794-1

ITU-T G650, G652

3 Optical and mechanical characteristics of fiber

4 Mechanical requirements and methods of fiber cable

5 Fiber color coding

6 Tube color coding

7 Mechanical specification

Single Mode Fiber

Multi Mode Fiber

Mechanical and Environmental Performance of the Cable

9 Environmentally
The product is accord with the instruction of EU ROHS

10 Packing and Logo

10.1 Packing

10.1.1 Each single length of cable shall be wound on an Iron stand-wooden composite drum.

10.1.2 Covered by plastic buffer sheet.

10.1.3 Sealed by strong wooden battens.

10.1.4 Drum length

10.1.4.1 Standard drum length is 4000m;

10.1.4.2 Total quantity is at least the ordered quantity.

10.1.4.3 Or it can be delivered according to customers’ requirements, but not longer than 5000m.

10.2. Drum Marking

• Manufacturer name;
• Manufacturing year and month;
• Roll-direction arrow;
• Cable outer end position indicating arrow;
• Cable type and size;
• Drum number;
• Drum length;
• Gross / net weight;
• Caution plate indicating the correct method for loading, unloading and convey the cable;
• Other customer information such as contract no., project no., and delivery destination. (if needed)

10.3 Cable identification documents

• Product qualified certificate;

Test report.

Package and Shipping:

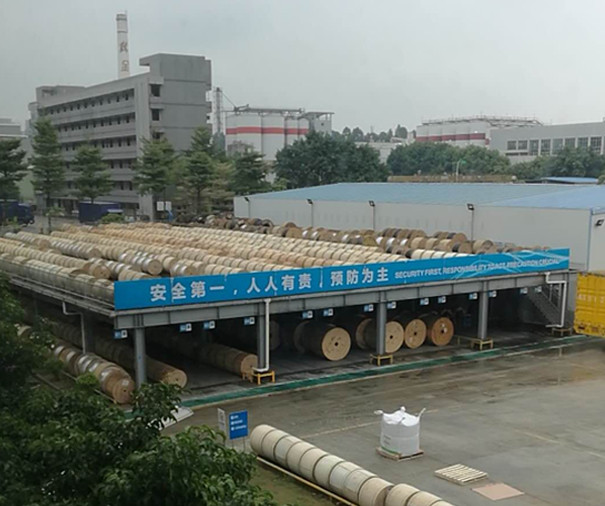

1. All of our fiber optic cable package are with export wooden drum.

2. 2~3km/drum, Outdoor fiber optic cable's wooden dimension is 110cm*110cm*71cm, 0.85CBM,

3. Can be load about 39 drums for a 20GP.

Also accept custom cable drum from customers. welcome to contact us!

FAQ:

1. Are you the real factory

Yes,we are the real factory with 11 years’ history.

2. What is your fiber brand ?

Fiber brands including : NECERO,Corning,Fiberhome

3. What is your main products

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;Fiber Optic Distribution Box

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material ?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7.MOQ: what is your minimum quantity ?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8.Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9.Payment:

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.

10.Shipping & Delivery:

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
