    Coloured Passive Optical Splitter Fiber Separation 1260-1650nm Low Insertion Loss

    Ask Lasest Price
    Brand Name : KEXINT
    Model Number : KXT-PLC-1×16 SC/UPC
    Certification : ISO9001-2015
    Price : $+8.57+PCS
    Payment Terms : T/T, D/A, D/P, L/C, Western Union, MoneyGram
    Supply Ability : 1000+PCS+2day
    Delivery Time : 8
    • Product Details
    • Company Profile

    Coloured Passive Optical Splitter Fiber Separation 1260-1650nm Low Insertion Loss

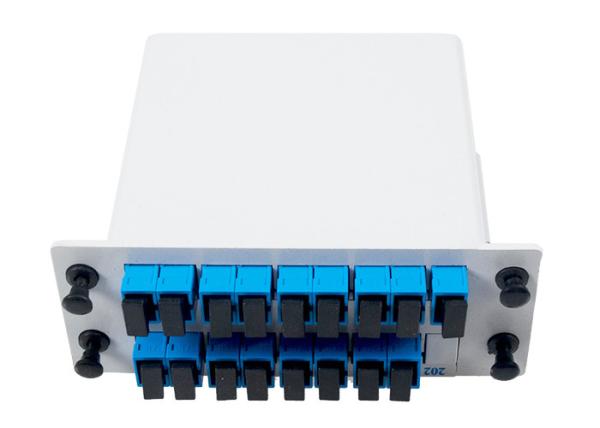

    PLC 1×16 Fiber Optical Splitter SC/APC LGX 1260 ~ 1650 1*16 Colour Fiber Separation

    PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.

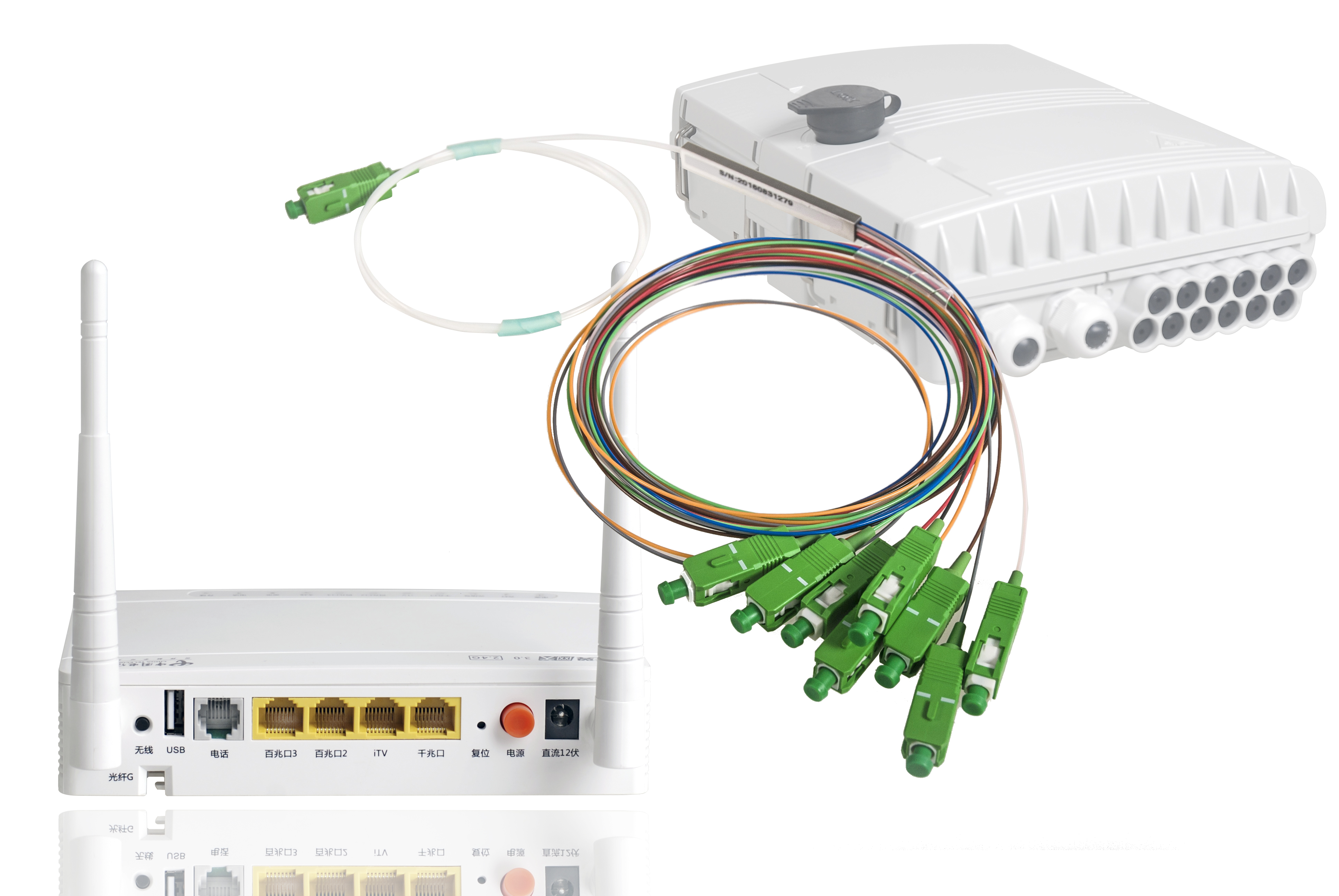

    Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.


    Features

    · Low Insertion loss

    · Low PDL Compact Design
    · Good channel-to-channel uniformity

    · Wide Operating Wavelength: From 1260nm to 1650nm
    · Wide Operating Temperature: From -40℃ to 85℃
    · High Reliability and Stability

    Applications:

    1. FTTx Deployments(GPON/BPON/EPON)

    2. Cable television (CATV)

    3. Local area networks (LAN)

    4. Test equipment

    5. Passive optical networks(PON)


    Specifications

    Fiber Optic PLC Splitter technical specifications
    Model nameKXT-PLCA-2665
    Wavelength(nm)1260-1650nm
    Free SampleYES
    MaterialPVC;ABS
    DesignOEM & ODM
    SpecificationsA (2.4.8 port) : 60L*7W*4H mm
    B (16 port ) : 60L*12W*4H mm
    C (32 port ) : 80L*20W*6H mm
    ConnectorsFC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
    fiber optic connectors are available
    Parameters1x21x41x81x161x321x641x128
    Insertion Loss (dB)≤4.2≤7.4≤10.7≤13.9≤17.2≤21.5≤24
    PDL (dB)≤0.2≤0.2≤0.3≤0.3≤0.3≤0.4≤0.5
    Uniformity (dB)≤0.6≤0.8≤0.8≤1.0≤1.5≤2.0≤2.0
    Return Loss (dB)≥50
    Directivity (dB)≥55
    Temperature Range (°C)-40~+75
    Storage Temperature (°C)-40~+85
    NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.





    Our Services:
    ___________________________________________________________

    1. Are you the real factory

    Yes,we are the real factory with 11 years history.

    2. What is your fiber brand ?

    Fiber brands including : Corning,Fiberhome

    3. What is your main products

    Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;Fiber Splitter PLC

    Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

    4. Product quality guarantee period?

    25 years Guarantee for fiber optic cable

    5. Do you have certificate for raw material ?

    We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

    6. What is your delivery time?

    Within 24 hours for 200 pcs normal kinds of fiber optic box;

    2 ~5 days for fiber optic patch cords with 500 box.

    7. MOQ: what is your minimum quantity

    MOQ for fiber optic box: 100 pcs

    There is no MOQ required for fiber optic box,as theres stock for normal kinds.

    8. Do you have distributor in other country or domestic?

    Until now, we sell our products to customers directly. And factory price could be offered.

    9. Payment:

    For large orders: T/T, L/C

    For small orders: T/T,Western Union and Paypal are acceptable.

    10. Shipping & Delivery:

    For large orders: by sea (LCL or FCL)

    For small orders: by sea (LCL), by air or by courier services,any of which is optional.
