FTTH Fast Connect Fiber Optic Distribution Box 4 into SC - 16 Ports

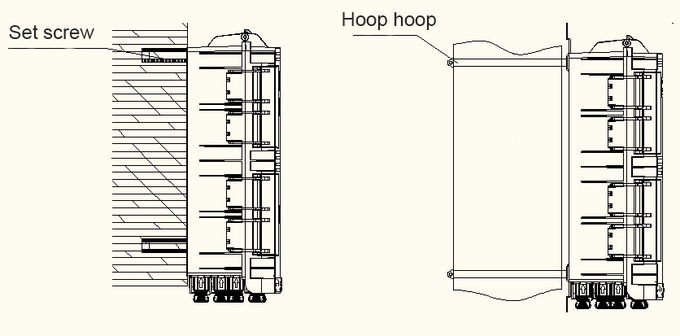

Wall mounting Holding pole
KXT-B-16XL this equipment is used as client wiring equipment in
FTTx system. It is mainly used for end welding, optical splitting,
wiring output and other functions of optical transmission
terminals. It can effectively terminate, protect and manage optical
cables for optical network transmission Required equipment in the
process.
Features:
·Water-proof design with IP-65 Protection Level.
·Integrated with flap-up splice cassette and adaptor holder
·All stainless metal plate and anti-rusting bolts, nuts
·Fiber bend radius control more than 40mm
·Suitable for the fusion splicer or mechanical splice
·2Pcs of 1*8 Splitter can be installed as an option
·Mechanical sealing structure and mid-span cable entry.
·16 ports cable entrance for drop cable
·16 adapter for drop cable patching
Applications :
·Wall mounting and pole mounting installation
·FTTH pre-installation and filed installation
·2*3mm indoor FTTH drop cable and outdoor figure-8FTTH
self-supporting drop cable
Cable port:
Could be connected 4 inlet ports, 16 outlet ports.
Cable diameter(mm): φ2~φ13
Structural characteristics:
1. The box is fully enclosed, with a simple and beautiful
appearance.
2. The box material is PC + ABS, which is superior in moisture
resistance, water resistance, dust resistance, corrosion resistance
and aging resistance, and the protection level reaches IP65.
3. It has the functions of fixing, welding, inventory and wiring of
optical cable / leather cable.
4. The incoming and outgoing lines of optical cables, pigtails, and
fiber jumpers are independent of each other and do not interfere
with each other, and are easy to maintain.
5. The switchboard can be turned upside down. The cable entry cable
has a pull-out function, which is convenient and quick to construct
and maintain.
6. The cabinet can be installed by wall or pole, and can be used
indoors and outdoors.
3.Technical conditions:
1. Environmental requirements
Working temperature: -40 ℃ ～ + 85 ℃
Relative humidity: ≤85% (+ 30 ° C)
Atmospheric pressure: 70KPa ～ 106Kpa
2. Main technical indicators
Insertion loss: ≤0.2dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
Mating durability life:> 1000 times
3. Lightning protection technical indicators
The box grounding device is insulated from the box, and the
insulation resistance is not less than 2 MΩ / 500V (DC);
IR≥2 MΩ / 500V
The withstand voltage between the box grounding device and the box
is not less than 3000V (DC) / min without breakdown, no flying
Arc; U≥3000V
Configuration:
| Model | Function | Structure size (Figure 1) | Full configuration capacity | Wall mounting size (Figure 2) | Maximum diameter of cable entry hole A |
| A*B*C(mm) | SC | D*E*F (mm) | G*H |
| KXT-B-16XL | Fiber Distribution Box | 210*330*121 | 16(SC/APC) | 176*150*250 | 65*273 | 14
|
Main Technical Indexes:
2.1 Environmental Temperature:-40°C~60°C;
2.2 Max capacity: 4 fibers;
2.3 Application for outdoor, IP65 grade
2.4 Material: High impact plastic.
