    Fiber Optic MTP MPO Attenuator Patch Cord Male APC 12 Core 3dB 5dB 10dB Single Mode

    Ask Lasest Price
    Brand Name : KEXINT
    Model Number : MPO-ATT
    Certification : ISO-9001 2015
    Price : $+46.88+1pcs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500+pcs+1week
    Delivery Time : 8
    • Product Details
    • Company Profile

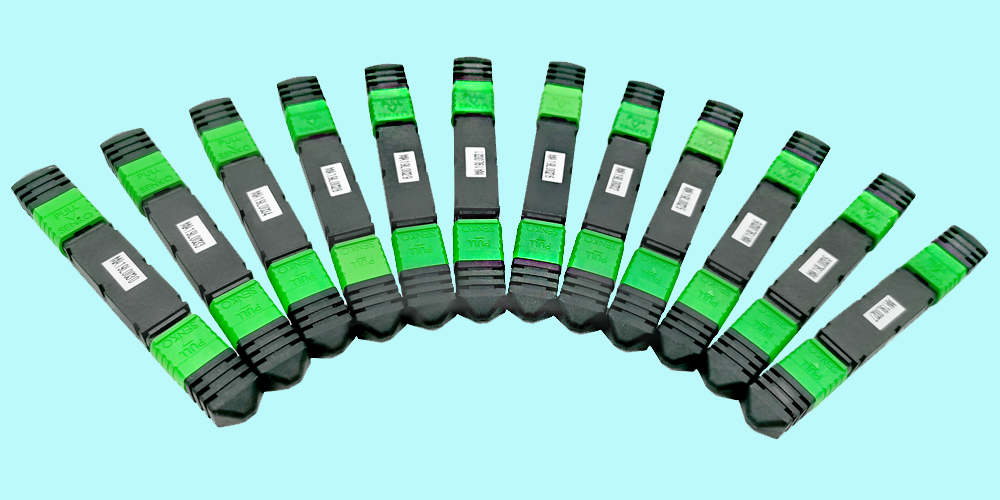

    Fiber Optic MTP MPO Attenuator Patch Cord Male APC 12 Core 3dB 5dB 10dB Single Mode

    Fiber Optic MTP MPO Attenuator Patch Cord Male APC 12core 3dB 5dB 10dB


    MPO attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection. Technique of this product makes network's composition more concise than those of conservative way which is the connection method of Attenuator independently in each channel, as downsizing the volume and saving time. This MPO Attenuator meets TIA/EIA 604-5, and IEC 61754-7 with compliance for RoHS.

    Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.


    Applications:

    Data Center Infrastructure
    Storage Area Network and Fiber Channel
    Various 40G and 100Gbps Protocols


    Features:

    High stability and High Durability
    Compact Housing Dimension
    QSFP Available (Option of female/male type of MTP connector)
    RoHS Compliant
    Specifications:
    ParameterConditions
    Operating Wavelength(㎚)1310/1550nm
    Attenuation(dB)1~20dB
    Insertion Loss2~10dB(±1dB), 11~20dB(±10%)
    Return Loss60dB(8° Polishing, SM)
    Operating temperature0~75°C
    Housing DimensionHeight 8.1mm/Length 80.0mm/Width 11.3mm





    Appearance:
    There must be no cracks and peeling gilt in appearances of attenuator.
    It must also have flawless end-face of ferrule in terms of optical characteristics.
