Ethernet 4 Gigabit GEPON ONU 1 USB 4GE 2POTS WIFI CATV Support IPv4
and IPv6 dual stack
Product Overview.
KXTGP6438 devices are designed for fulfilling FTTH and triple play
service demand of fixed network operators or cable operators. These
boxes are based on the mature Gigabit GPON technology, which have
high ratio of performance to price, and the technology of 802.11n
WiFi (2T2R), Layer 2/3 and high quality VoIP as well. They are
highly reliable and easy to maintain, with guaranteed QoS for
different service. And they are fully compliant with technical
regulations such as ITUT984.x and technical requirement of GPON
Equipment from China Telecom.
Product Descriptions:
♦ Plug and play, features auto-detecting, auto-configuration, and
auto firmware upgrade, etc.
♦ Integrated OMCI remote configuration and maintenance function.
♦ Support rich QinQ VLAN functions and IGMP Snooping multicast
features.
♦ Fully compatibility with OLT based on Broadcom/PMC/Cortina
chipset.
♦ Support 802.11n WiFi(2T2R) function.
♦ Support NAT, Firewall function.
♦ Support IPv4 and IPv6 dual stack.
♦ Integrated line testing compliant with GR-909 on POTS.
Technical parameters:
| Technical items | Descriptions |
| Chipsets | Realtek |
| Optical interface | 1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
| Optical Wavelength | Tx 1310nm, Rx 1490nm |
| Optical interface | SC/PC |
| RX sensitivity | < -27dBm @ 1490nm |
| WLAN | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R two external antenna |
| WLAN throughput | 100Mbps @ 40users, 1518bytes, no-encryption 107Mbps @ 40users, 512bytes, encryption |
| LAN interface | 4*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45
connectors |
| POTS interface | 2 FXS, RJ11 connectors |
| CATV interface | RF |
| DC power supply | DC 12V/1A, external AC-DC power adaptor |
| Button | RST, Power, WiFi, WPS, Pair |
| Power consumption | ≤ 10W |
| Operating condition | Operating temp: -5 ~ +55℃,Operating humidity: 10~90% (non-condensed) |
| Storing condition | Storing temp: -40 ~ +85℃,Storing humidity:10~90%(non-condensed) |
| Dimension | 200mm*140mm*40mm(length*width*height) |
| Net weight | 0.4Kg |
Data Service Functions.
1) Full speed non-blocking switching.
2) 2048 MAC address table.
3) 64 full range 4095 VLAN ID
4) Support VLAN QinQ, transparent, tag, translation, trunk, etc.
5) Integrated port monitoring, port mirroring, port rate limiting,
port SLA, etc.
6) Support auto polarity detection of Ethernet ports (AUTO MDIX).
7) Integrated IEEE802.1p QoS with four level priority queues.
8) Support IPv4 IGMP snooping and IPv6 MLD snooping.
9) Support bridging, router and bridging/router mixed mode.
POTS Service Functions
1) Call protocol: SIP (IMS compatible), seamless compatible with all
popular call agent.
2) Integrate heartbeat function and support active/standby call agent.
3) Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729,
auto-negotiate with call agent.
4) Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms
tail length.
5) Support high/low speed fax/Modem, bypass fax, and T38 fax.
6) Support RFC2833 and redundant RFC2833, difference rings, MD5
authentication, call forward, call waiting, hot-line call, alarm
clock, and all kinds of value-added voice service.
7) Multi-party conferencing.
8) Line testing according to GR-909.
9) IP address assignment: dynamic PPPoE/DHCP Client and static IP.
10) Support WEB, CLI, TR069.
11) Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and
firmware upgrade.
12) Call loss is less than 0.01%.

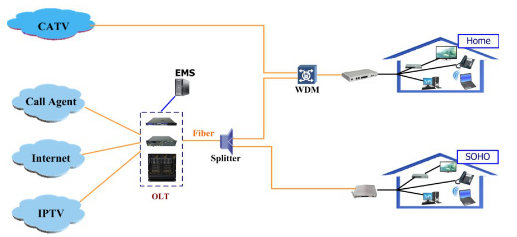

Application chart
