    FTTH Handheld Fiber Optic Tools Splicer Electric Fusion Machine KL-630E Optical Power Meter

    Ask Lasest Price
    Brand Name : KEXINT
    Model Number : KL-360E
    Certification : ISO-9001 2015
    Price : 1449.37$
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram, L/C
    Supply Ability : 10+PCS+Day
    Delivery Time : 7
    • Product Details
    • Company Profile

    FTTH Handheld Fiber Optic Tools Splicer Electric Fusion Machine KL-630E Optical Power Meter

    FTTH Handheld Fiber Optic Tools Splicer Electric Fusion Machine KL-630E Optical Power Meter


    which enable fusion super stable, reliable, suitable for long-haul installation & maintenance.

    Sperate fiber pressing system ,ceremic presusre heads

    Auto & fast heating ,editable heating time & temperature

    Independent developed software based

    High-quanlity splicing guarantted 5000m above sea level

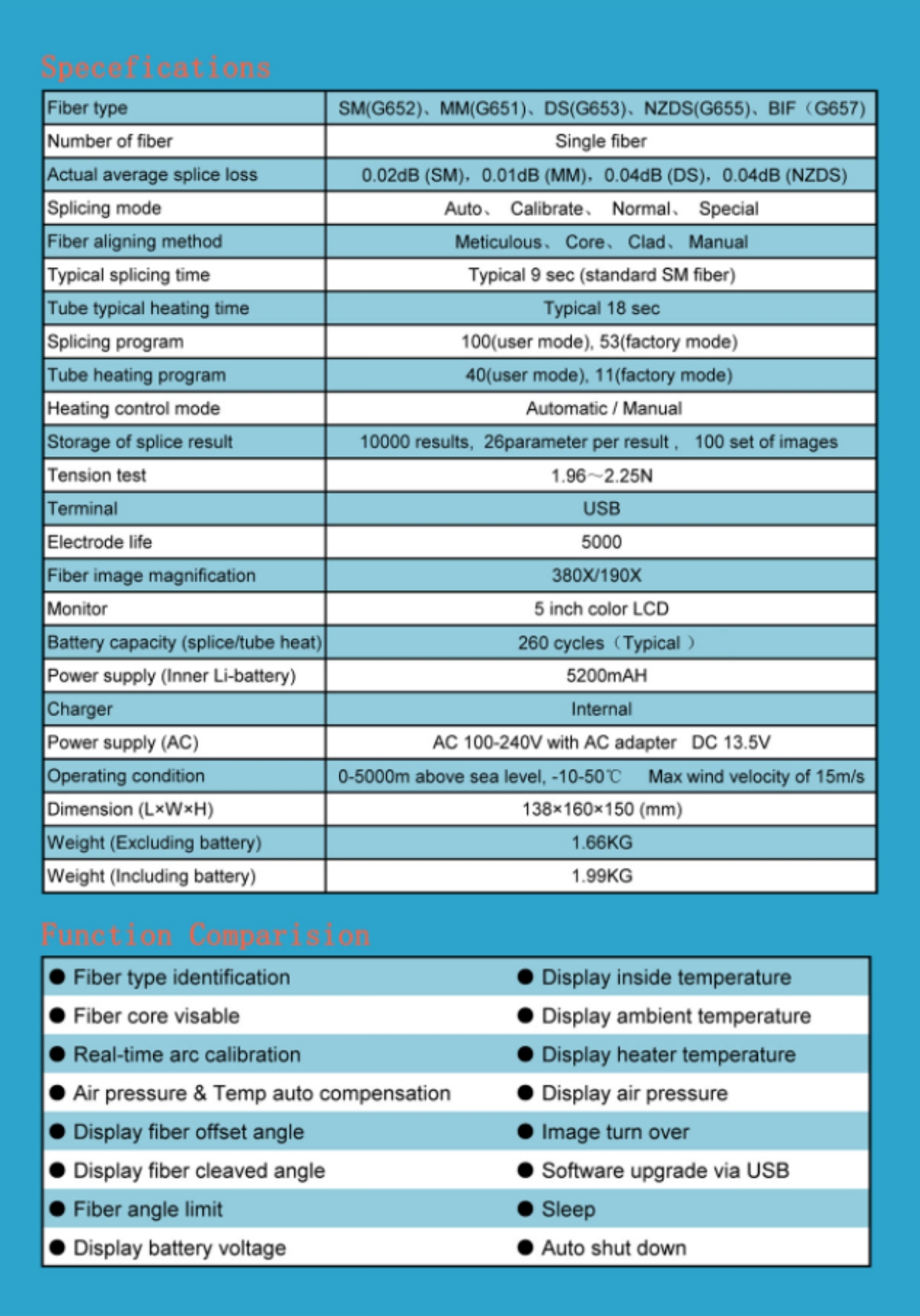

    Specification:

    Applicable FibersSM MM DS NZDS and other self-defined fiber types
    Real-time ARC Control & CalibrationReal-time ARC control & calibration , Auto environmental adaptation , Auto oxidized electrodes adaptation
    Return Loss>60dB
    Typical Splicing TimeTypical 9 seconds
    Typical Heating TimeTypical 15 seconds ( Fast Heating Control , Editable heating time, Editable heating temperature
    Alignment MethodMeticulous,Core,Clad,Manual
    Fiber diameterCladding diameter:80-150μm , Coating diameter: 250-1000μm: 16mm
    Protection sleeve length60mm, 40mm and other lengths
    Tension test2N
    Universal ClampApplicable with bare fiber, pigtail, jump cable, indoor cable. Optional SC clamp for SOC
    Fiber image Magnification320X (X or Y view)
    Monitor4.3 inch TFT color LCD monitor, image rotation
    TerminalUpgrade software & Download splice record Via USB 2.0
    Splicing program53 (templet), 100(user)
    Tube heating program11 (templet),40(user)
    Storage of splice result

    10,000 splice results.


    PS. It can save 100 splicing images in the built-in SD card

    Battery capacity>350 cycles (splicing & heating)
    Power supplyAC 100-240V with AC adapter DC13.5V Inner Li-battery (5200mAH), charging time <3.5 hours
    Operating condition0-5000m above sea level, -10-50℃ Max wind velocity of 15m/s <95% RH(Non-condensing)
    Dimension161mm(L)×136mm(W)×141mm(H)
    Weight1.6Kg excluding battery, 1.93Kg including battery
