Outdoor GYXTC8S 12G652D Fiber Optic Armoured Cable OS2
Self-supporting Erial Installation 8 Structure
Description
The 250um fiber is positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. A steel wire locates in the center of core as a
metallic strength member. The tubes (and fillers) are stranded
around the strength member into a compact and circular cable core.
After an Aluminum Polyethylene Laminate (APL) moisture battier is
applied around the cable core, this part of cable accompanied with
the stranded wires as the supporting part are completed with a
polyethylene (PE) sheath to be figure 8 structure.
Our figure 8 fiber optic cable GYXTC8S GYXTC8A GYTC8S GYTC8A GYTC8Y
are also available on request. This type cable is specifically
applied for self-supporting aerial installation.
Feature
High tensile strength of stranded wires meet the requirement of
self-supporting and reduce the installation cast
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
Storage / Operating Temperature: -40℃~+70℃
Application
Usable in Self-supporting
Cable Parameters
| Items | Specifications |
| Fiber Count | 4 |
| Colored Coating Fiber | Dimension | 250µm±15µm |
| Color | Blue, Orange, Green, Brown, Gray, White |
| Loose Tube | Dimension | 1.8 mm±0.05mm |
| Material | PBT |
| Color | Natural |
| Steel Strength Member | Diameter | 1.0mm x7 |
| Material | Steel |
| Outer Jacket | Dimension | Upper 5.0mm±0.1mm, lower part 8.0mm±0.1mm |
| Material | PE |
| Color | Black |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
| Transmission Characteristics |
| G.652 | G.655 | 50/125μm | 62.5/125μm |
Max Attenuation (dB/km) (+20℃) | 850 nm | | | 3.0 | 3.3 |
| 1300 nm | | | 1.0 | 1.0 |
| 1310 nm | 0.36 | 0.4 | | |
| 1550 nm | 0.24 | 0.23 | | |
| Cable Cute-off Wavelength (nm) | ≤1260 | ≤1450 | | |
Mechanical requirements and methods of fiber cable
| Tensile strength | 2850N, conform to IEC 794-1-E1 while fiber strain is ≤0.33% |
| Crush | 2200N/100mm, conform to IEC 794-1-E3 |
| Impact | conform to IEC 794-1-E4 |
| Repeated bending | conform to IEC 794-1-E6 |
| Temperature cycling test | conform to IEC 794-1-F1 |
Fiber color coding
Each fiber will be identifiable throughout the length of the cable
in accordance with the following color sequence. Fiber color in
each tube starts from No. 1 Blue.
| Fiber color code | 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Slate | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Rose | Aqua |

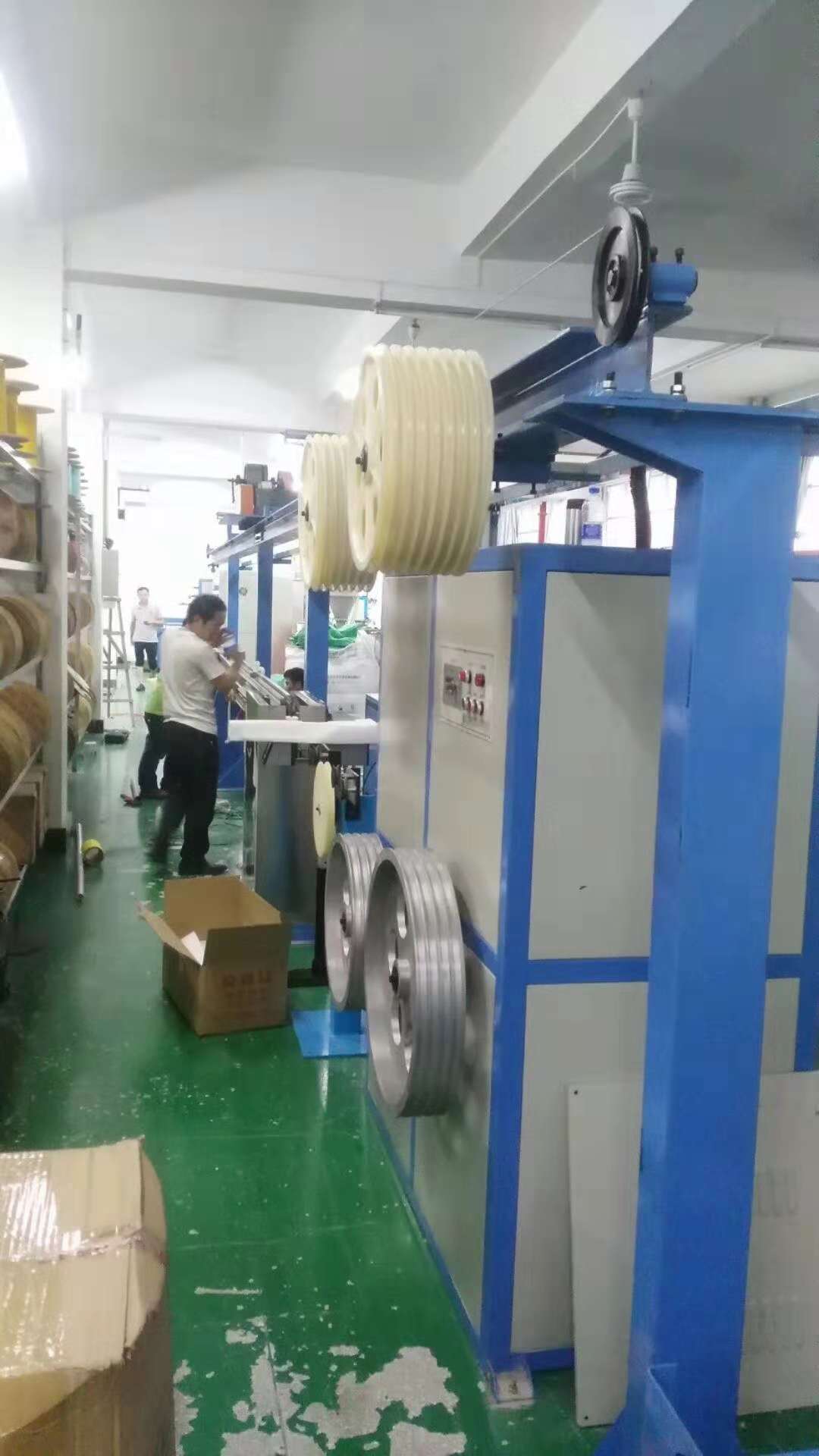

Coloring Workshop
Package and Shipping:
1. All of our fiber optic cable package are with export wooden
drum.
2. 2~3km/drum, Outdoor fiber optic cable's wooden dimension is
110cm*110cm*71cm, 0.85CBM,
3. Can be load about 39 drums for a 20GP.
Also accept custom cable drum from customers. welcome to contact
us!
