Brand Name : | KEXINT |
Model Number : | SC/UPC-SC/UPC-3.0-3M |
Certification : | Ce Ross IS0 9001-2015 |
Price : | $ +0.725+1PCS |
Payment Terms : | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 10000+1 day |
Delivery Time : | 5 |

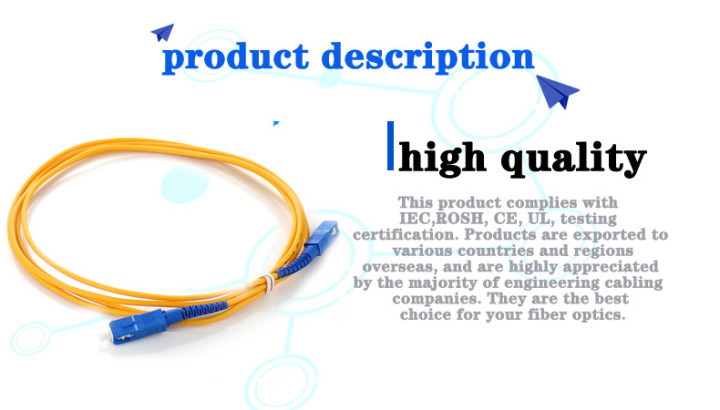

FTTH Distribution BOX SC/UPC Fiber Optic Patch Cord SM 3m Optical
network construction
Fiber Optic Patch Cordare ultra reliable components featuring low insertion loss and
return loss. It is used in the connection between the optical fiber
distribution frame and the equipment (OLT) optical module in the
computer room, the optical fiber distribution frame wiring, the
optical path link of the optical cable transfer box in the city
center FTTH wiring, the user's optical fiber distribution box, and
the ONU end connection.
It has a thick protective layer and is generally used for the
connection between the optical transceiver and the terminal box. It
is used in some fields such as optical fiber communication systems,
optical fiber access networks, optical fiber data transmission, and
local area networks.
Application :
a. FTTX Systems
b. PON Networks
c. CATV Links
d. Optical Signal Distribution
e. Local Areal Networks (LAN)
f. Fiber Communication Systems

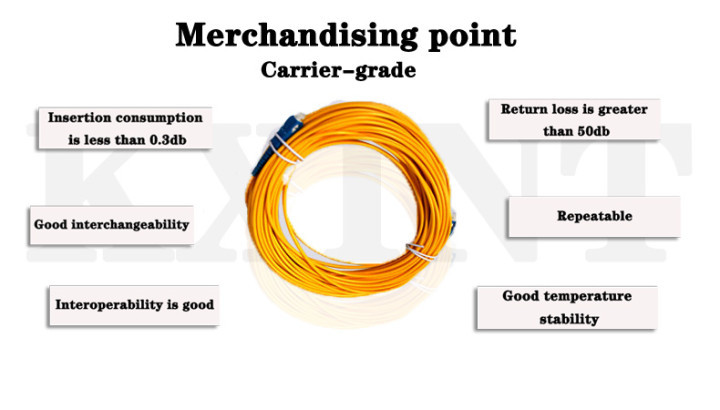

Features:
1. Low insertion loss and back reflection loss
2. Good echangeabilityGood Durability
3. High temperature stability
4. CE,ROHS,FCC
Characteristics:
a. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
b. Ferrule End-face: PC, UPCAPC
c. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
d. Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
e. Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
f. Cable Length: 1, 2, 3 meter or customized
g. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
Specifications:
Specification | Unit | FC, SC, LC/Armored Cables | ST, MU | MT-RJ, MPO | E2000 | ||||||||
Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | |||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
Insertion loss | dB | ≤2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | dB | ≥550 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
Our company promises:
1. The quality of our products meets European environmental
standards and 100% passes 3D testing.
2. Our customers are all over the world. The main customers are
France ORANGE, Russia Telecom, MTC, VIPCOM, Kenya Safaricom, Brazil
TIM, etc ...
3. We can OEM.
4. We produce optical products and network cables, which can
provide and solve any product problems in the FTTX system.
5. We can produce 10,000 jumpers per day and 300,000 per month.
![]() |
