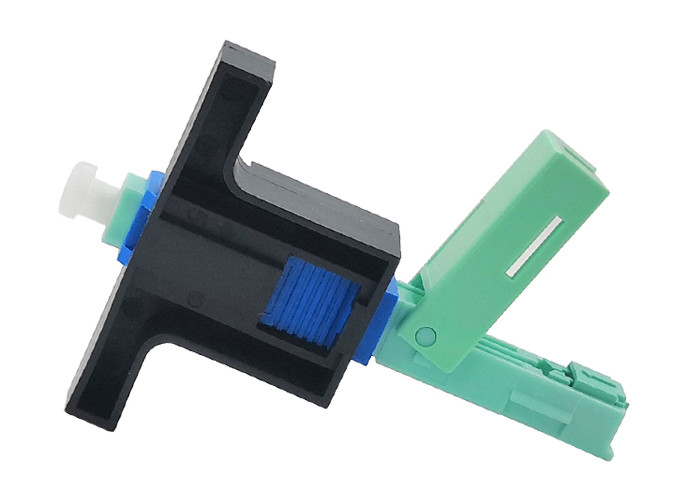

Crimp ceramic V Slot SC UPC Fiber Optic Quick Single Mode FTTH Tool
Cold Fast Connector 53mm
Quick Assembly Connector (also named “ No-Polish Connector ” ,
“Pre-polish Connector” or “ Fast Connector ”) is an easy-to-install
device. No tool or jig is required. It is universal for 250um
/900um / 2.0mm / 3.0mm / Flat Cable.
it was designed for fast termination with pre-polished connector.
Using V groove technology, it requires no epoxy. With transparent
body, the connecting result can be seen by Fiber Checker
immediately. This is an ideal solution, either for outside plant or
inside a building.
Optic Fiber Fast Connector
1. Simple structure
2. Save time
3. Low insertion loss.
Feature
1. Based on the pluggable non-preset tube technology
2. Precision ceramic components with co-axial self centering,
Excellent and durable optical property
3. Optical fiber fits axially in elastic way and avoids completely
any false connect
4. Triple clamping through the naked fiber, tight buffer and cable,
etc., can be used as patchcord
5. High on-line tensile strength of Optical Fast Connector after
terminating, always keep connecting under the force from cabling
and drawing.
6. Integrated protection of the casing to withstand harsh user
environment.
7. Directly connectable with ONU without any optical socket, which
reduces FTTH cost.
8. High success rate and easiness in installation with average
splicing time 100 sec
9. Lower requirement for the habit working and work environment
call for to the builder.
10. Visible Installation quality; independent from any far end
light source and special device satisfying cabling construction in
any sectioned way.
Specification
| ITEM | Technical Parameters |
| Applicable for | 3.1 x 2.0 mm Drop cable |
| Optical fiber diameter | 125μm ( 657A & 657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | ≤ 0.2dB(1310nm & 1550nm) |
| Return loss | ≥40dB |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Tensile strength | >50 N |
| Using temperature | -40~+80°C |
| On-line tensile strength (20 N) | IL ≤ 0.2dB RL ≤ 5dB |
| Mechanical durability (500 times) | IL ≤ 0.2dB RL ≤ 5dB |
Drop-off test (drop-off height 4m, once per direction, totally 3 times) | IL ≤ 0.2dB RL ≤ 5dB
|
Shipping time
7000 pcs can be produced every day.
