Drawer Rack 1U 96 Core Fiber Optic MTP MPO Patch Cord OM3 8*8F
8*12F 4*24F 100Gbps
The 1U Drawer Rack provide secure transitions between MPO/MTP® and
LC discrete connector interfaces. They are used to
interface MPO/MTP® backbones with LC patching and active equipment
connections.
The 1U Drawer Rack contain factory controlled and tested
MPO/MTP®-LC fanouts to deliver optical performance and reliability.
Low
loss MPO/MTP® Elite® and LC Premium versions are offered featuring
significantly improved low inser on losses for demanding low
power budget, high speed networks.
Features:
a. Maximizes density with up to 96 fiber connections in 1U for
efficient utilization of rack space.
b. 19" rack mount, Color black.
c. Reliability - 100% Tested.Factory terminated and tested.
d. 96F full loaded capacity, 8*8F/8*12F/4*24F cassettes are available
e. Drawer type design with Max. 220mm drawing depth.
Application:
a.Data Centre infrastructure
b.Data communica on applica ons
c.Emerging 40 and 100Gbps Protocols compa ble
d.Storage Area Network - Fiber Channel
Specification:
| ITEM | CHARACTERISTICS |
| Opera on Temperature | -10°C~+70°C |
| Storage Temperature | -40°C~+85°C |
| Rela ve Humidity | ≤85%(+30 °C) |
| Air Pressure | 70kPa~106kPa |
| Dimensions (W x D x H) | 483mm×270mm×1U |
Optical Performance
| Type | Wavelength | I.L. Max | R.L.Min |
| Elite MTP-LC(MM) | 850nm/1300nm | 0.35dB | 30dB |
| Elite MTP-LC(SM) | 1310nm/1550nm | 0.35dB | 50dB |
| MPO-LC(MM) | 850nm/1300nm | 0.60dB | 20dB |
| MPO-LC(SM) | 1310nm/1550nm | 0.75dB | 50dB |
Patch Panel Optical data:
| 1u 96 Core MTP/MPO Patch Panel | | |
| Connector | Insertion Loss | Return Loss |
| MPO | ≤0.75dB | ≥25dB |
| LC | ≤0.3dB | ≥50dB |
MTP MPO Patch Cord Optical data:
| Optical fiber type | MM:4F,8F,12F,24F,48F,96F | SM:4F,8F,12F,24F |
| Standard loss IL(dB) | ＜0.75 dB | ＜0.75 dB |
| Standard loss RL(dB) | >25 | >50(APC),>20dB(PC) |
| Low loss IL(dB) | 0.35 | 0.35 |
| Low loss RL(dB) | >35 | >50(APC),>35dB(PC) |
Specifications:
| Product Name : | 1U Rack Mount 19 inch Enclosure Box 96 Fiber ODF fiber termination
box |
| A adapter ports | output LC / MTP, SC, FC, ST, etc... |
| B adapter ports | input 8/12/24* MTP / MPO |
| Housing material | SPCC steel with powder coating or aluminum |
| Customize | big order welcome customize, much better price. |
End face geometric parameters and standards:
| Requirement | MM (50 & 62.5/125) | SM(APC) |
Surface inclination angle
(X) | -0.2 °/0.2° | -0.2° / 0.2° |
Surface inclination angle
(Y) | -0.2°/ 0.2° | 7.8°/ 8.2 ° |
| Fiber height | 1000nm - 3500nm, | 1000nm - 3500nm, |
| Maximum height difference of all optical fibers | <750nm | <600nm |
| Core height(nm) | -50-300 mm | -50-300 mm |

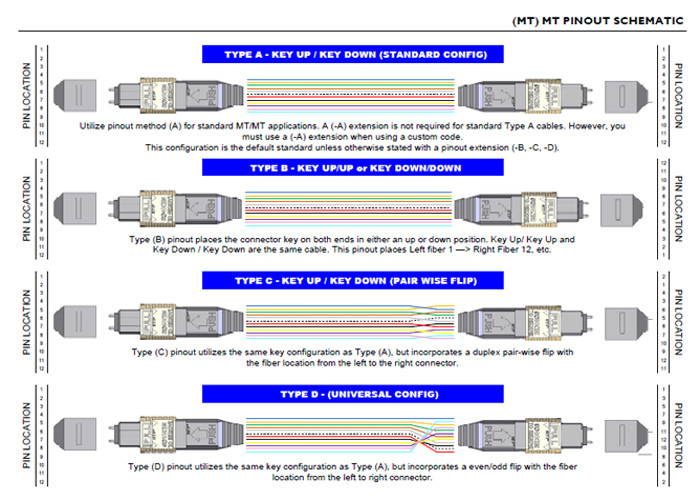

Scheme:A / B / C / D
Application:
Our advantage :
1: We are a factory with more than 200 employees and short delivery
times.
2: The product has passed strict testing and the quality is
guaranteed.
3: South Korea imports chips, work is more stable;
4: 100% support after-sales service, if there is a problem in the
product use process, we can replace it for you for free.
