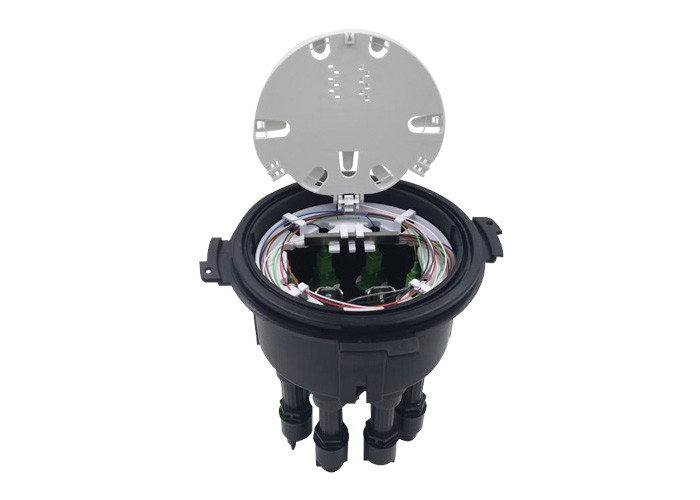

12 Core 2 Into 8 Out SC Fiber Optic Closure Enclosure Outdoor IP68
1 X 8 PLC Splitter IP68
KXT-M-12 The whole set of joint box plastic parts adopts
scientifically formulated engineering plastics, which can
effectively prevent the aging caused by cold, heat, oxygen and
ultraviolet rays in nature through CNC injection molding; and
ensure that the main structural parts of the joint box have
excellent mechanical strength. The box body has undergone strict
aging test and has the functions of flame retardant, waterproof,
anti-vibration and anti-shock; the matched sealing material has
passed the viscous test and the anti-white ant test, and the
sealing performance is reliable and convenient for multiple
packaging.
The outer box body is made of high-strength engineering plastics,
It has features of light weight, high mechanical strength, anti
aging, strong corrosion resistance, lightning resistance, and long
service life.
Features:
1.Rotary locking device is used, no screw fastening is required;
mechanical seal, good sealing performance and simple operation.
2.The structure of the splice tray is adopted, and the radius of
curvature of the splice disc is >40 mm.
3 .It is easy to install and can be constructed without special
construction training. It can be set up to open the device and it
is convenient to repeat.
4. The box body is injection molded with special plastic added
anti-aging agent and anti-ultraviolet radiation material, which has
high anti-aging and anti-UV ability and prolongs service life.
5. Equipped with various sizes of access cables, it is suitable for
the entry and exit of the outer diameter of various sizes of cables.
Specification sheet
| number | Model | KXT-M12 |
| 1 | Box Material | PP |
| 2 | Size(mm) | 183.1*162.98*181.85 |
| 3 | Applicable cable diameter | Oval hole: | φ10~φ16 |
| 4 | Number of cable holes | Oval hole: | 1 PCS |
| 5 | Maximum number of welded cores | 12 Core |
| 6 | Fiber splice tray | Fusion position | middle |
| 7 | Sealing method | Mechanical combination seal |
| 8 | Repeatedly open | Easy to open without special tools |
| 9 | Product use environment | Overhead
|
Configuration:
| Material | Size | Max Capacity | Nos of Adaptor | Weight | Color |
Strengthen
Polymer Plastic | (mm)
Φ183×182 | Splice 12 Fibers
(1trays,12 fiber/tray) | PLC Splitter
1 pcs of 1x8 | 8 pcs of SC | 1.95 kg | Black |
Applications
Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation
10-16mm cable ports suitable for 2x3mm indoor FTTH drop cable and
outdoor figure FTTH self-supporting drop cable
Standard Accessories
Splice cassette and cable management tool, installation nuts and
bolts, protection sleeves,
hose clamp, cable tube, wreach, cover holder, rubber seal for cable
entrance.
| 380×245×130mm | 1.95kg | 210×205×210 mm(1 pcs) | 640×425×430 mm(6 pcs) |
Technical performance indicators
1 Adapt to ambient temperature: -40 ° C ~ +65 ° C.
2 Atmospheric pressure: 62-106 kPa.
3 axial tension: >1000N/1min or more.
4 Tensile force > 2000N/10cm2 pressure, time 1min.
5 Flattening force: 〉2000N/100mm pressure, time 1min.
6 Insulation resistance: >2 × 104MΩ
7 Withstand voltage: 15KV (DC) / 1min, no arcing, no breakdown.
8 Temperature cycle: -40 °C ~ +65 °C, internal pressure 60 (+5)
Kpa, the number of cycles is 10 times, the pressure drop after
normal temperature does not exceed 5kpa.
9 Service life: 25 years or more.
Packaging, Transportation, Storage
Packaging
1 The cable connector box product shall be packaged at the factory,
and the packaging requirements and the package surface mark shall
comply with the provisions of GB/T3873-1983.
2 Each set of cable splice boxes is placed in a basic package, and
several basic boxes are packed in a large Package.
3 In addition to the product, the following items and related
documents should be loaded in the basic package. The documents can
be packed in plastic bags or paper bags:
a) spare parts and special tools;
b) product instruction manual;
c) product certification;
d) Packing list.
Transportation
The packaging of this product should be suitable for transportation
of any transportation means. Avoid collision, drop, direct rain and
snow and sun exposure during transportation.
Storage
1 The product should be stored in a well-ventilated, dry warehouse
with no corrosive gases around it.
2 Storage temperature: -40 ° C ~ +65 ° C.
