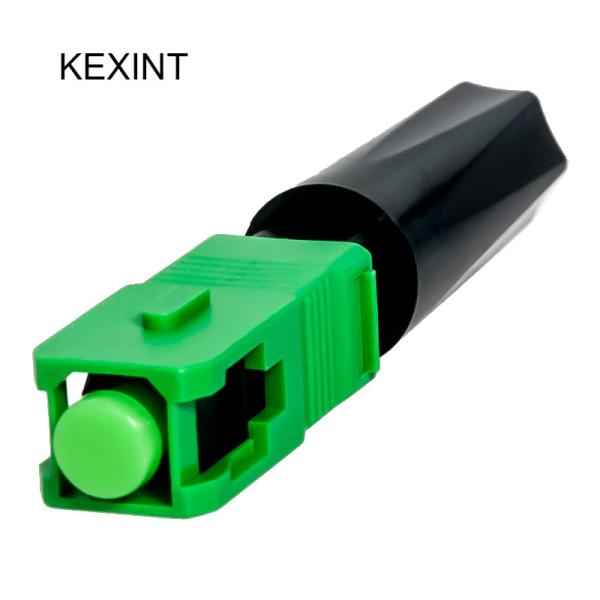

    Fast Connector Fiber Optic 55mm SC APC Single Mode Fiber Connectors Couplers 10N

    Ask Lasest Price
    Brand Name : KEXINT
    Model Number : Fiber Optic Quick Connector
    Certification : ISO9001-2008
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 5000+pcs+1day
    Delivery Time : 8
    • Product Details
    • Company Profile

    Fast Connector Fiber Optic 55mm SC APC Single Mode Fiber Connectors Couplers 10N

    Fast Connector Fiber Optic 55mm SC APC Single Mode Fiber Connectors Couplers 10N
    ST LC FC SC Fiber Optic Quick Connector Fast Optical Fiber Connectors And Couplers
    Fast connectors, which can be easily installed in field applications, are widely used in FTTX. Comparing to other conventional methods, fast connectors with pre-polish ferrule reduce the preparation and termination time significantly. Tools required during field assembly of fast connectors are much simpler and easy operation. It is possible to improve the flexibility of optical wiring and FTTX distribution applications.
    Performance Index
    arameters
    SC/UPC
    SC/APC
    FC/UPC
    LC/UPC
    Application
    Drop Cables, Indoor Cables
    Fiber Diameter
    125um (G.657 A1/A2)
    Fiber Mode
    Single Mode 0.9 2.0 3.0
    Max. Insertion Loss
    0.5dB, Typical 0.3dB
    0.3dB
    Min. Return Loss
    40
    45
    40
    45
    Min. Fiber Retention
    5N
    5N
    4N
    Min. Cable Retention
    10N
    10N
    8N
    Tensile Load
    50N
    50N
    10N
    Operating Temperature Range
    -40℃ to 75℃
    ParametersSpecifications
    Connector TypeSC/LC/FC/ST
    Dimension60mm
    Cable Diameters0.9/2.0/3.0mm
    Fiber ModeSM/MM
    Grinding end-faceUPC/APC
    UPCAPC
    Insertion Loss≤0.5dB≤0.5dB
    UPCAPC
    Return Loss≥45dB≥50dB
    Tension Test≥100N
    Operating Temperature-40℃~+75℃


    Features:
    1. FTTH project usable
    2. Field installable
    3. Insert loss less than 0.3dB Max 0.5dB
    4. Metal V-shape cavity work well in high and low temperature
    5. Installation less than 1 minutes
    6. Reliable and superior optical performance
    7. Cable Tensile test complies with Telcordia GR-326-CORE

    Application:
    1. FTTH project usable
    2. Field installable
    3. Insert loss less than 0.15dB
    4. Metal V-shape cavity work well in high and low temperature
    5. Installation less than 1 minutes
    6. Reliable and superior optical performance
    7. Cable Tensile test complies with Telcordia GR-326-COR








    Our advantages:
    1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.
    2.OEM&ODM: We can help you to design or put your logo and company name into products.
    3.Remote Technical support&Full Technical Document
    4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)
    5.English software, English Indicator
    6.Professional, Very competitive price
    7.Large Stock, Fast Delivery
    8.Quality Assurance
