Mini Module 0.9 Fiber Optical PLC Splitter 1*8 0.9 SC/APC 1×8 Miniature Optical splitter G657A1 Hytrel

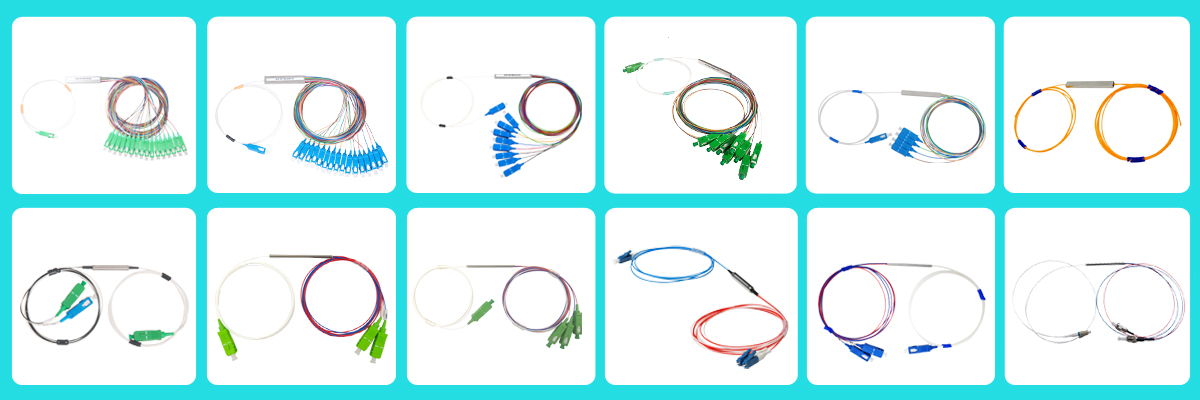

KEXINT provides a various of 1×N and 2×N PLC splitters, They are all with superior optical performance, high stability and high reliability to meet various application requirements. PLC 1×8 Single Mode Fiber Optical Splitter SC/APC Connector splitter plc Neutral package or Customzied packing way. then put into a carton.Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.

Features:

Performance Index

Type	Unit	1 X 4	1 X 8	1 X 16	1 X 32
Optical Fiber diameter	um	9/125 um(smf-28)
wavelength	nm	1260~1620
Insertion Loss	dB	＜7.0	＜10.6	＜14.0	＜17.3
Uniformity	dB	＜0.6	＜1.0	＜1.5	＜2.3
PDL Loss	dB	＜0.30	＜0.30	＜0.30	＜0.30
Directivity	dB	＞55
Return Loss	dB	＞50
Operation Temperature	℃	-40~ +85
Storage Temperature	℃	-40 ~ +85
Device Dimension	mm	4 0X 4 X 4	4 0X 4 X 4	5 0X 4 X 4	5 0X 7 X 4
Mini-Module Dimension	mm	5 0X 7 X 4	5 0X 7 X 4	6 0X 12 X 4	8 0X20 X 6
Module Dimension	mm	100 X 80 X 10	100 X 80 X 10	120 X 80 X 18	140 X 115 X 18

Our advantage : 1:We are a factory with more than 200 employees and short delivery times.

2:The product has passed strict testing and the quality is guaranteed.

3:South Korea imports chips, work is more stable;

      KEXINT which was founded in the year 2007 is a high-tech enterprise specialized in telecom communication network equipment research and development (R&D), manufacturing, marketing, and providing application solutions and technical services .

     Its main products include fiber optic cable, fiber distribution box, fiber optical patchcord , MPO/MTP , and optical splitter (PLC/FBT/WDM), fast connecter , fiber optic adapters, fiber optic attenuators ,We have more than 11 years of experience in passive fiber optic products . In 2016 , we also established OLT/ONU R&D and production. Products are widely used in telecommunications, broadcasting and other fields. Television, power engineering, and other industries. The main market distribution: Russia and other CIS, South Africa, Europe, South America, etc. The company promises: quality and integrity first

 Rich experiences in passive production of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.
