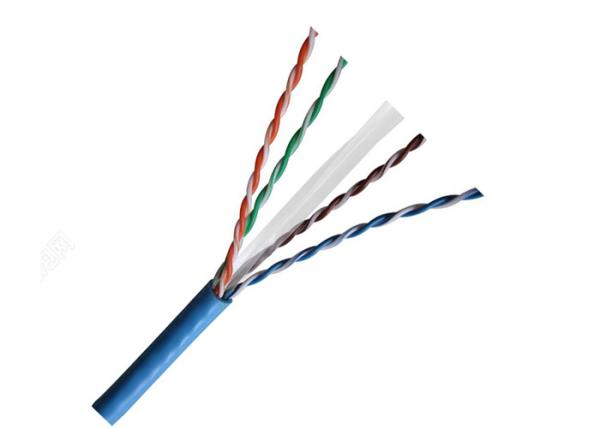

CAT6 UTP Network Electric Copper Lan Cable Rj45 100M Transmission
23AWG 305m
Material Instruction
a.23AWG Soft Plain Copper
b.Eco-friendly,pollution-free and new materials selected.Promise
new material only.
c.Insulation: Solid HDPE.
d.Eco-friendly PE Jacket , high-temperature resistance,long working
life.
Physical Electrical Characteristics
1. Using standard twisted construction design, small crosstalk of
signal transmission 2.Upload and download in high speed transfer.
3. Bandwidth is standard 250 MHz.
4. Support 10-Gigabit Ethernet netword transmission requirements.
5. DC resistance (max): 4.8Ω/100m at 20°C;
6. Mutual capactitance (max): 5.6nF/100m;
7. Unbalanced capacitance (max): 330pF/100m;
8. Dielectric strength between conductors (min): 2.5kV/2s;
9. Impedance: 1-250MHz 100±15Ω;
10. Differential phase delay (max): 45ns/100m;
11. Operating temperature: -20~+60°C;
12. Permitted bend radius: 10 times diameter of the cable.
Application:
Ethernet,
10 Base-T,
100 Base-T4,
ATM,
TP-PMD Seppch,
Telephone,
Multimedia,
Trunk Wiring

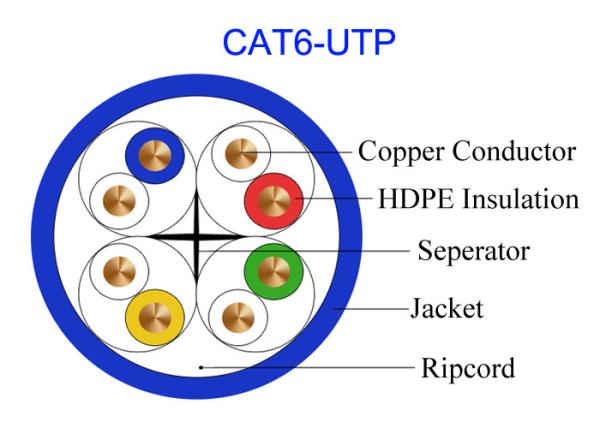

Cable Construction:
Conductor Dimension: 0.565mm
Core Dimension: 0.91mm 0.92mm
No. Of Pairs: 4
Nom. OD: 5.3mm 14.0mm 13.0mm
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA -
568B,UL444
Certificates ISO9001,14000, ROHS.
Transmission Performance for reference
| Frequency MHz | Attenuation Max dB/100m | NEXT Min. dB/100m | PSNEXT Min. dB/100m | ELFEXT Min. db/100m | RL Min. dB | PHASE VELOCITY MIN(M/S) | PHASE DELAY MAX(ns/100m) |
| 1 | 1.9 | 74 | 72 | 68 | 20 | 0.585c | 570 |
| 4 | 3.7 | 65 | 63 | 56 | 23 | --- | 552 |
| 10 | 5.9 | 59 | 57 | 48 | 25 | 0.611c | 545 |
| 16 | 7.5 | 56 | 54 | 44 | 25 | --- | 543 |
| 20 | 8.4 | 55 | 53 | 42 | 25 | --- | 542 |
| 31.25 | 10.6 | 52 | 50 | 38 | 23.6 | --- | 540 |
| 62.5 | 15.4 | 47 | 45 | 32 | 21.5 | --- | 539 |
| 100 | 19.8 | 44 | 42 | 28 | 20.1 | 0.620c | 538 |
| 200 | 29 | 40 | 38 | 22 | 18 | | 537 |
| 250 | 32.8 | 38 | 36 | 20 | 17.3 | 0.622c | 536 |
Cable Specification
| Item Name | UTP CAT6 Lan Cable |
| TYPE | Cat6 |
| Conductor | 23AWG Solid Copper |
| Number of Conductors | 8 |
| Insulation Material | HDPE |
| Cross Material | PP |
| Application | Lan cable |
| Jacket | PE |
| Rip cord | Nylon |
| Operating temperature | -20 ° C - +60 ° C |
| Standard | EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS |
| Certificate | CE/ISO/RoHS Approved |
Products:
1) Bare Copper Conductor, Bare Aluminum Conductor;
2) 450/750V and below, PVC Insulation, Power Cables and Electrical
Wires;
3) 0.6/1kV, PVC Insulation, Power Cables and Electrical Wires;
4) 0.6/1kV XLPE Insulation, Power Cables;
5) 8.7/15kV, 3.6/6kV, 6/10kV, 12/20kV, 26/35kV, Medium Voltage
power cables;
6) Control Cables, Instrument Cables, Safety/Security Cables, Alarm
Cables;
7) Flexible Cable, Soft Cable, Welding Cables, Battery Connect
Cables, Machine Connect Cables;
8) 1kV or 10kV, Aerial Bunch/Bundled Cables;
9) Fire Resistant Cables, Fire Retardant Cables, Fire Rated Cables,
LSZH Cables, Solar Cables,
RoHS Cables, Environmental Protection Cables, Irradiation
Cross-linked Cables;
10) Communication Cables:
a. Network Cables: Cat 5, Cat 5e, Cat 6 Cables;
b. Telephone Cables: 2 Pairs, 4 Pairs, 8 Pairs, 10 Pairs and 20
Pairs Cables;
c. Coaxial Cables: SYV75-5, SYWV75-5, RG6, RG11, RG59 Cables.
| Conductor size | 0.40- 0.51mm |
| Conductor material | Solid Copper |
| Number of Conductor | 4 pairs |
| Shiled | non-shiled |
| Insulation Material | HDPE |
| Insulation Thickness | 1.02mm |
| Jacket Material | PVC |
| Outer Jacket Thickness | 6.30mm |
| DC Resistance (Max.) | 7 Ohm/100m |
| DC Resistance Imbalance | 2.50% |
| Working Capacitance | 5.4nF/100m |
| Operating Temperation | -40℃-+75℃ |
| PVC Jacket Color | As customer request |
| Marking on Jacket | As customer Request |
| Lenght | 305m |
Our products Categories Provided:
A.Optical Fiber Cable and Patch Cord
B.Lan and Network Cable and Patch Cord
C.Alarm Cable and Speaker Cable
D.Drop Wire and Telephone Cable
E.Communication Cable
F.Coaxial Cable
G.Electrical Wire and Power Cable
H.Telecom Accessory.
OEM / Related Production For Lan Cable
OEM custom-made production according to different customer's
request. Shape, PVC ,color, Conductor diameter, degree of
tightness, logo design, Inner and Outer package design, all of
below request are available.
