FTTH Drop Cable Patch Cord Fiber Optic Cable Cable With Connector SC/APC SC/UPC 50M

1.Product Description:

FTTH Optical fiber patch cord is made up by optical communication unit, strengthen pieces and the sheath composition, that is put the optical communication unit in the middle, both sides parallel place two root non-metallic strengthen members or metal strengthening component phosphate steel wire, finally squeeze the black sheath into cable.

2.Product Construction:

3. Applications:

Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission

Test Equipment and CATV

Gigabit Ethernet

4. Cable type: GJXFH-1B6a2

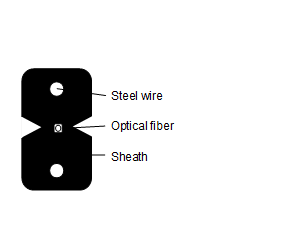

4.1. Profile view:

4.2. Technology specification

Item	Technology parameter
Cable specification	GJXFH-1B6a2
Fiber color	Nature (or customize)
Fiber type	9/125 (G657A2)
Sheath color	Black
Sheath material	LSZH
Coppered Steel wire diameter (mm)	0.45
Steel wire diameter (mm)	/
Cable dimension (mm)	3.0(±0.1)*2.0(±0.1)
Cable weight (Kg/km)	9.9
Min. bending radius (mm) (Along the cable flat direction)	15(static) ;30(dynamic)
Attenuation (dB/km)	≦0.4 at 1310nm, ≦0.3 at 1550nm
Temperature Dependence Induced Attenuation (－40℃ to ＋60℃) (dB/km)	≤0.04
Short tension (N)	80
Short crush (N/100mm)	1000
Operation temperature (℃)	-40~+70
Installation temperature (℃)	-5~+60
Transportation and storage temperature (℃)	-40~+70

Note: the product is accord with the instruction of EU RoHS.

5. Optical Cable Color

G652D/G657A	OM2	OM3	OM4	Armored Cables
Black or White	Orange or Black	Aqua or Black	Magenta or Black	Blue or Black

6. Connector Specification

6.1 General Requirements

Specification	Unit	SC, FC, LC			ST, MU, MT-RJ,SMA		MTP,MPO		E2000
		Single-mode		Multimode	Single-mode	Multimode	Multimode	Single-mode	Single-mode
		UPC	APC	PC	UPC	PC	PC	APC	UPC	APC
Insertion loss	dB	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.7	≤0.75	≤0.3	≤0.3
Return loss	dB	≥50	≥60	≥30	≥50	≥30	≥25	≥45	≥55	≥75
Wavelength	nm	1310/1510			1310/1510		1310/1510		1310/1510
Interchangeability	dB	≤0.2			≤0.2		≤0.2		≤0.2
Vibration	dB	≤0.2			≤0.2		≤0.2		≤0.2
Operating temperature	℃	-40~75			-40~75		-40~75		-40~75
Storage temperature	℃	-45~85			-45~85		-45~85		-45~85
Cable diameter	mm	φ3.0,φ2.0,φ0.9			φ3.0,φ2.0,φ0.9		φ3.0,φ2.0,φ0.9		φ3.0,φ2.0,φ0.9

6.2 Special Designation

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber	Singlemode/Multimode
	50/125, 62.5/125 (Multimode) OM2&OM1
	50/125, 10G (Multimode) OM3
Cable	Simplex, Duplex
	Φ3.0mm, Φ2.0mm, Φ0.9mm
	PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master)
	≤ 0.25dB (For Singlemode Standard)
	≤ 0.25dB (For Multimode)
	Tested by JDS
Return Loss (Singlemode)	UPC ≥ 50dB
	SPC ≥ 55dB
	APC ≥ 60dB (typ.65dB)
	Tested by JDS
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement ( Singlemode)	Ferrule Endface Radius
	7mm ≤ R ≤ 12mm (For APC)
	10mm ≤ R ≤ 25mm (For Standard)
	Apex Offset ≤ 30 μm (For Master)
	Apex Offset ≤ 50 μm (For Standard)
	Undercut -50nm ≤ U ≤ 50nm
	Tested by DORC
Geometry Requirement ( Singlemode)	Ferrule Endface Radius
	7mm ≤ R ≤ 12mm (For APC)
	10mm ≤ R ≤ 25mm (For Standard)
	Apex Offset ≤ 30 μm (For Master)
	Apex Offset ≤ 50 μm (For Standard)
	Undercut -50nm ≤ U ≤ 50nm
	Tested by DORC

7. Color of connector

8.Environmentally

The product is accord with the instruction of EU ROHS
