Waterproof SC/APC Fiber Optical Patch Cord LSZH G657A2 HUAWEI Armour IP68 5.0 Or 3.0 Optical Cable

1. Product Description:
Fiber Optic Patch Cord is important of optical network. Special fool-proofing design equal to HUAWEI Mini SC connector has blind-mating function; One hand Bayonet-style mechanical latch. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch. It provides quick installation solutions and has good performance on mating receptacle / Adapter. Cable can be armoured or non-amoured. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications.

2. Feature:

1).Low Insertion loss

2).High return loss

3).Good Repeatability

4).Good Interchange

5).Excellent Environmental Adaptability

3. Application:

1).Communication rooms

2).FTTH (Fiber to The Home)

3).LAN (Local Area Network)

4).FOS (fiber optic sensor)

5).Fiber Optic Communication System

6).Optical fiber connected and transmitted equipment

7).Defense combat readiness

4. Optical Fiber Patch Cord Characteristics

4.1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

4.2 Ferrule End-face: PC,UPC,APC

4.3 Core Type: Single-mode (SM: 9/125um):G652D,G657A

Multimode(MM: 50/125um,62.5/125um,OM3 or OM4)

4.4 Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...

4.5 Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm

4.6 Cable Length: 1, 2, 3 meter or customized

4.7 Sheath Type: PVC, LSZH , OFNR, OFNP, Plenum ,Armored…

5.Specification:

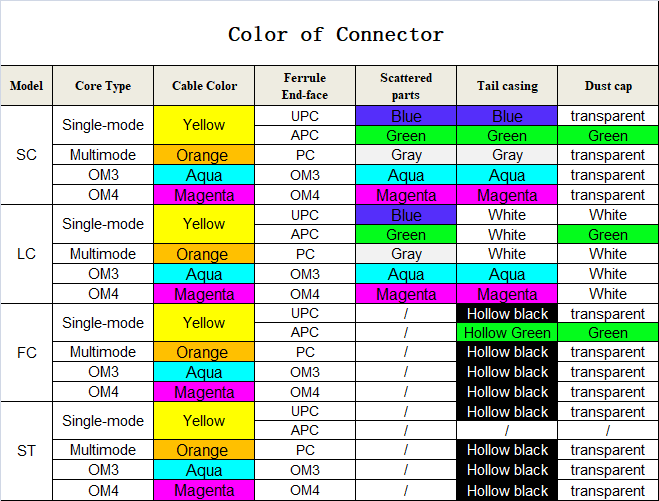

6. Optical Cable Color

7.Product list:

8.Production specification:

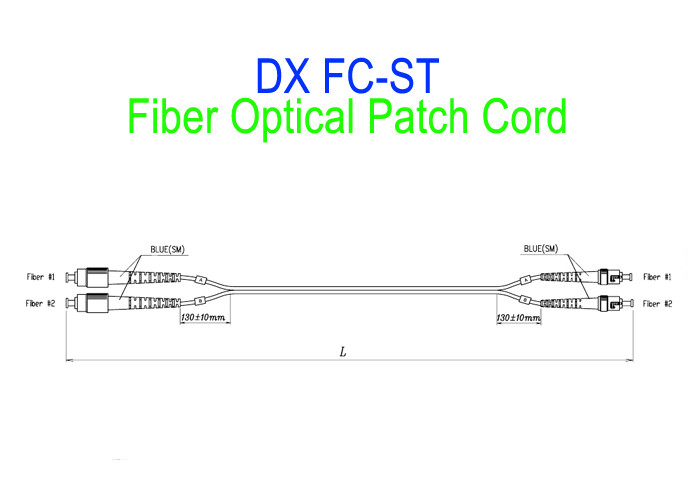

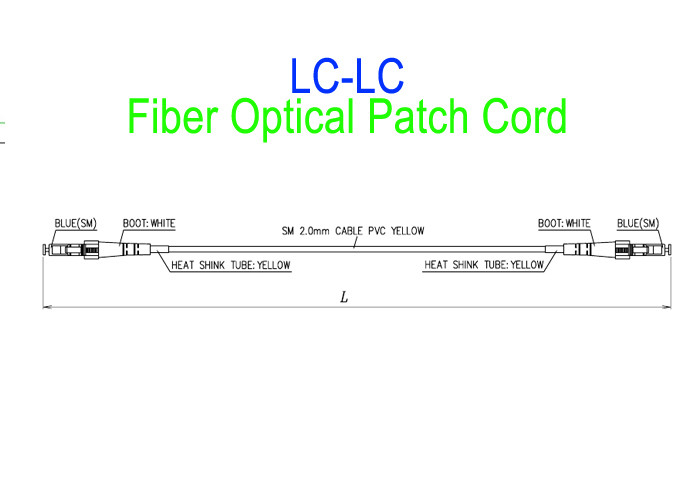

8 .Design drawings of products:

      KEXINT which was founded in the year 2007 is a high-tech enterprise specialized in telecom communication network equipment research and development (R&D), manufacturing, marketing, and providing application solutions and technical services .

     Its main products include fiber optic cable, fiber distribution box, fiber optical patchcord , MPO/MTP , and optical splitter (PLC/FBT/WDM), fast connecter , fiber optic adapters, fiber optic attenuators ,We have more than 11 years of experience in passive fiber optic products . In 2016 , we also established OLT/ONU R&D and production. Products are widely used in telecommunications, broadcasting and other fields. Television, power engineering, and other industries. The main market distribution: Russia and other CIS, South Africa, Europe, South America, etc. The company promises: quality and integrity first

 Rich experiences in passive production of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.
