12 Core APC SM 20m MTP MPO Patch Cord 9 / 125 Single mode LSZH Female to Female

    Buy cheap 12 Core APC SM 20m MTP MPO Patch Cord 9 / 125 Single mode LSZH Female to Female from wholesalers

    Buy cheap 12 Core APC SM 20m MTP MPO Patch Cord 9 / 125 Single mode LSZH Female to Female from wholesalers
    • Buy cheap 12 Core APC SM 20m MTP MPO Patch Cord 9 / 125 Single mode LSZH Female to Female from wholesalers
    • Buy cheap 12 Core APC SM 20m MTP MPO Patch Cord 9 / 125 Single mode LSZH Female to Female from wholesalers
    • Buy cheap 12 Core APC SM 20m MTP MPO Patch Cord 9 / 125 Single mode LSZH Female to Female from wholesalers
    • Buy cheap 12 Core APC SM 20m MTP MPO Patch Cord 9 / 125 Single mode LSZH Female to Female from wholesalers
    • Buy cheap 12 Core APC SM 20m MTP MPO Patch Cord 9 / 125 Single mode LSZH Female to Female from wholesalers

    12 Core APC SM 20m MTP MPO Patch Cord 9 / 125 Single mode LSZH Female to Female

    Ask Lasest Price
    Brand Name : KEXINT
    Model Number : 2m MTP MPO Patchcord Female 12 Fibers 9/125 Single mode
    Certification : 5063541
    Price : $+46.15+1pcs
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 200+PCS+1day
    Delivery Time : 7
    • Product Details
    • Company Profile

    12 Core APC SM 20m MTP MPO Patch Cord 9 / 125 Single mode LSZH Female to Female

    12 Core APC SM 20m MTP MPO Patch Cord 9 / 125 Single mode LSZH Female to Female


    MTP patch cord are designed to high density multifibers solutions,fit for different installation environment and easy to install between the trunk line,data centers and buildings.Our trunk cables are 100% factory tested and can meet your special requirements.All the MTP patch cord connector compliance with GR-1435 Core Compliant.


    MTP connector brand : USCONEC


    Application:


    1. CATV

    2. Active dvice termination

    3. Telecommunication networks

    4. Metro

    5. Local Area Networks(LANs)

    6. Data Processing networks

    7. Test Equipment

    8. Premise installations.

    9. Wide Area Networks(WANs)


    Connector Performance :

    ModelSMMM
    Connector Fiber Count8, 12, 24 core
    PolishPC, APC
    Housing Color

    Standard (green),

    Elite (Yellow)

    Standard(Beige)

    Elite(Auqa)

    Insertion Loss Standard typeless than 0.7dBLess than 0.5dB
    Insertion loss Elite typeLess than 0.35dBLess than 0.3dB
    Return LossPC >50dB, APC>60dB>30dB
    Durability (500 matings)less than 0.2dB
    Test Eavelength1310/1550nm850/1300nm

    Fiber Cable Perfomance :


    Fiber TypeOS2, OM1, OM2, OM3, OM4
    Fiber Count8, 12, 24, 48, 72, 96, 144 cores
    Cable Diameter3.0mm 5.5mm or customized
    Jacket ColorYeloow, Orange, Aqua, Purple
    Jacket MaterialOFNR, OFNP, PVC, LSZH
    Tensile Strength500N
    Operating Temperature-20 to 70 ℃
    Storage Temperature-40 to 75℃

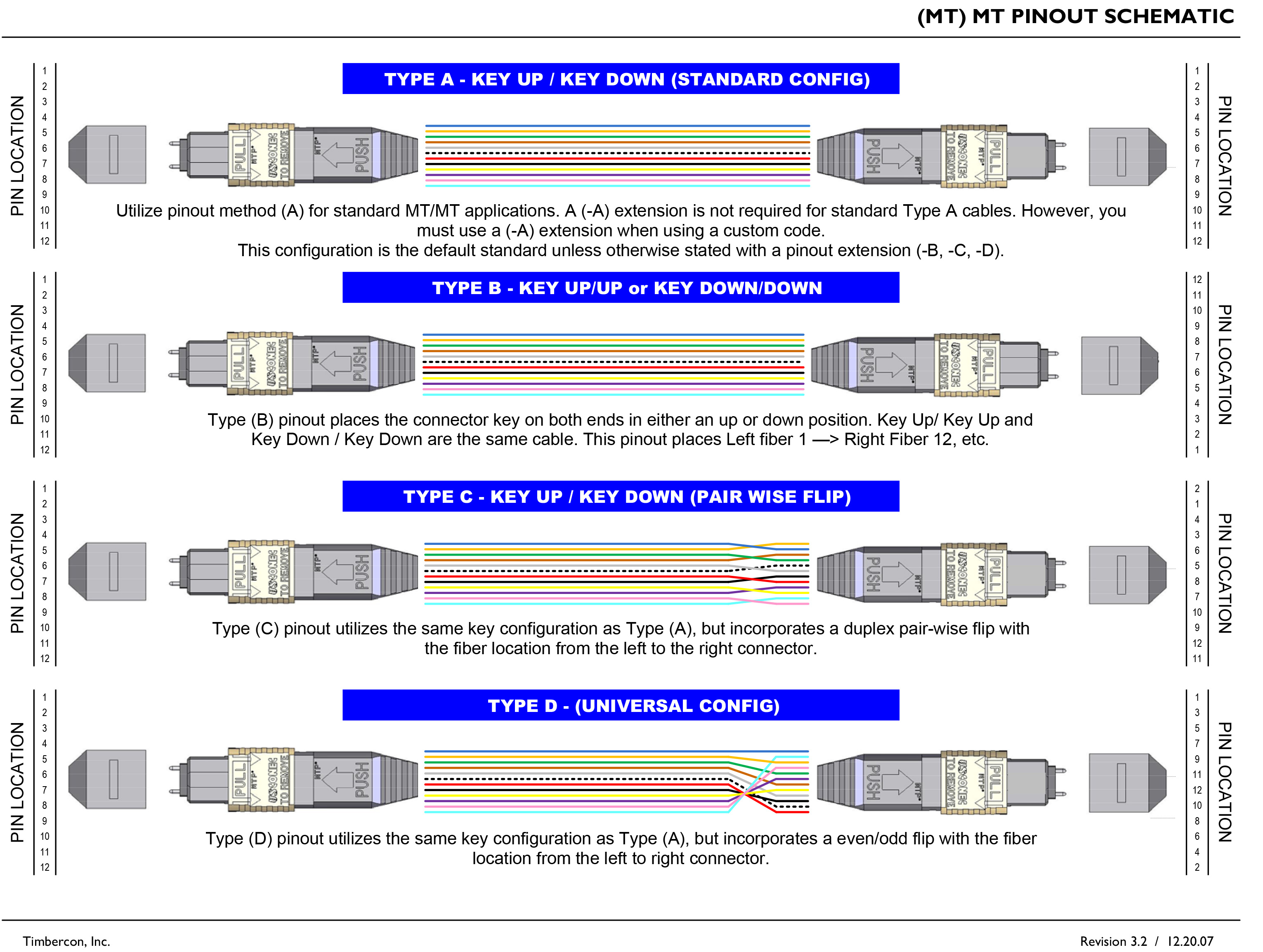

    Scheme:A / B / C / D



    Our advantage :
    1: We are a factory with more than 200 employees and short delivery times.
    2: The product has passed strict testing and the quality is guaranteed.
    3: South Korea imports chips, work is more stable;
    4: 100% support after-sales service, if there is a problem in the product use process, we can replace it for you for free.
