40G 100G MTP MPO Patch Cord To LC Cable 0.35dB Max Insertion Loss Cassettes OM3

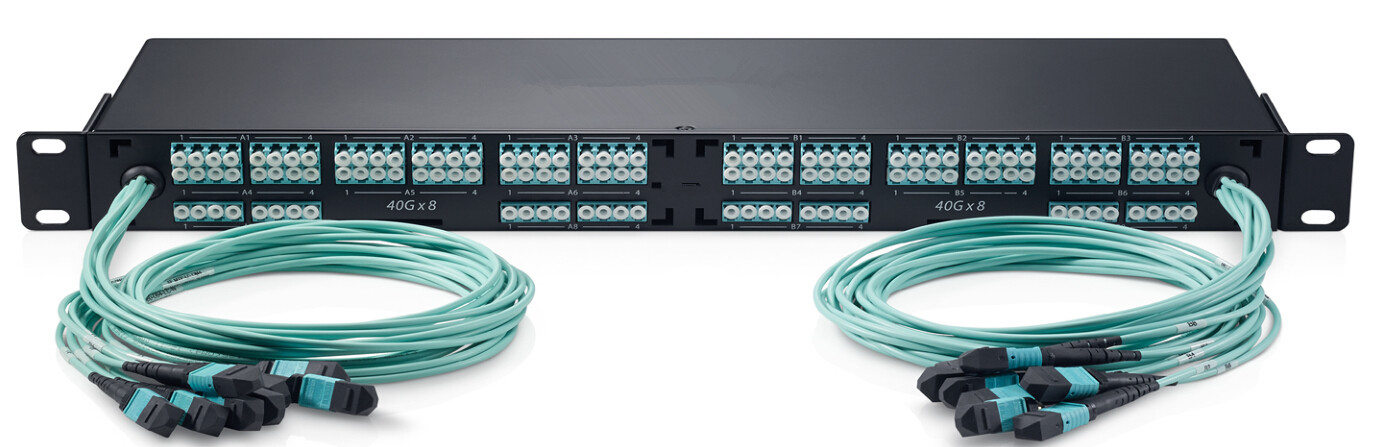

The MPO / MTP Cassette Modules provide secure transition between MPO / MTP and LC or SC discrete
connectors. They provide a quick, reliably high performance and efficient way to
deploy up to 24 LC or 12 SC fiber ports in a single module. The Modules can be mounted in 1U or 4U 19” multi slot chassis. They are available in Multi-mode and Single-mode cable.
MTP connector brand :USCONEC
MPO connectoe Brand:SENKO
Features:
1. High-density and small design, Easy and fast installation.
2. Available in 12 / 24 / 48 fiber versions.
3. Field connections with guaranteed quality and simplifies fiber
routing.
4. Modular system management, easy reconfiguration for moves, adds,
and changes.
5. Customized fiber polarity in the module.
Applications:
1. CATV
2. Active dvice termination
3.Telecommunication networks
4.Metro
5.Local Area Networks(LANs)
6.Data Processing networks
7.Test Equipment
8.Premise installations.
9.Wide Area Networks(WANs)
Performance:
MPO / MTP Termination:
| Type | Single-mode (APC polish) | Single-mode (PC polish) | Multi-mode (PC polish) |
| Fiber count | 4,8,12, 24 ,48 etc. | 4,8,12, 24,48 etc. | 4,8,12, 24,48 etc. |
| Fiber type | G652D,G657A1, etc. | G652D,G657A1, etc. | 62.5/125,OM2,OM3,OM4, etc. |
| Maximum Insertion Loss | Elite / Low Loss | Standard | Elite / Low Loss | Standard | Elite / Low Loss | Standard |
≤0.35 dB 0.25 dB Typical | ≤0.70 dB 0.5 dB Typical | ≤0.35 dB 0.25 dB Typical | ≤0.70 dB 0.5 dB Typical | ≤0.35 dB 0.2 dB Typical | ≤0.5 dB 0.35 dB Typical |
| Return Loss | ≥55 dB | ≥45 dB | ≥20 dB |
| Durability | ≥200 times | ≥200 times | ≥200 times |
| Test Wavelength | 1310nm / 1550nm | 1310nm / 1550nm | 850nm / 1300nm |
Generic Connector Termination:
| Type | Single-mode (APC polish) | Single-mode (PC polish) | Multi-mode (PC polish) |
| Fiber type | G652D,G657A1, etc. | G652D,G657A1, etc. | 62.5/125,OM2,OM3,OM4, etc. |
| Maximum Insertion Loss | Low Loss | Standard | Low Loss | Standard | Low Loss | Standard |
| ≤0.1 dB | ≤0.30 dB | ≤0.1 dB | ≤0.30 dB | ≤0.1 dB | ≤0.30 dB |
| 0.05 dB Typical | 0.25 dB Typical | 0.05 dB Typical | 0.25 dB Typical | 0.05 dB Typical | 0.25 dB Typical |
| Return Loss | ≥60 dB | ≥50 dB | ≥25 dB |
| Durability | ≥500 times | ≥500 times | ≥500 times |
| Test Wavelength | 1310nm / 1550nm | 1310nm / 1550nm | 850nm / 1300nm |
Our advantage :
1: We are a factory with more than 200 employees and short delivery
times.
2: The product has passed strict testing and the quality is
guaranteed.
3: South Korea imports chips, work is more stable;
4: 100% support after-sales service, if there is a problem in the
product use process, we can replace it for you for free.
