16 Core Fiber Optic Distribution Box Gray PC ABS PE Wall Hanging and Pole Installation

FIBER OPTIC TERMINATION BOX

Description:

Small size and light weight for easy installation compact body

·Wall mounted with mechanical protection function

·Available for FC,SC,ST,LC adatpers

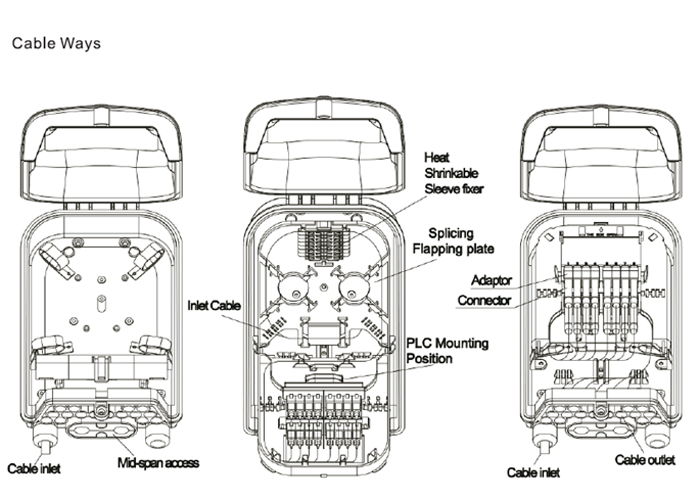

·Fiber can get in from bottom or side

·Anti-UV, Ultra violet resistant and rainfall resistant

Features:

Item	KXT-16G
Size(HxWxD)mm	172x287x102
Out Cable diameter(mm)	0.9 , 2.0 , 3.0 , 4.2 , 4.8
Cable ports	16
Adapter ports	16
Max capacity of splice	16
Suitable Adapter	FC,SC,LC,E2000
Materials	PC
EnvironmentalTemperature(℃)	－40～80

1,Environmental requirement

Working temperature:-40℃～+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2,Main technical datasheet

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:＞1000 times

3,Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2×10⁴ MΩ/500V(DC)；

IR≥2×10⁴ MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover；U≥3000V

Configuration table:

Table 1 Model and configuration

Model	Description	Size(Pic 1)A*B*C(mm)	Max Capacity	Installation Size(Pic 2) D*E (mm)	Into the largest cable diameter (mm)	Cable outlet size (mm)
KXT-16	Distribution Box	293*219*84	16	187*70	16	2~4.6

Site installation:

Installation:

1．Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.

2．Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole .

Accessories:

1. Users' Manual*1.

2. Key*1.

3. Accessories Bag * 1

Packing, transportation and storage

This equipment packaging is moisture-proof and earthquake-proof. The accessories are packed first plastic

bags, then into the boxes with plastic bags for sealing. There are moisture-proof and earthquake direction signs

outside the boxes.

It can’t be inverted in the transport and be free from rolling when carrying. Please load carefully and

prevent the collision. You should prevent it from heavy rain before installation. The temperature in the

transport should be controlled between-35℃ to +55℃.

The excessive accumulation of goods should be stored on the cartons. The treasury should away from the

erosion of corrosive gas equipment and the temperature should be below 45℃ and higher than -5℃, and

relative temperature should not be high in long-term(generally less than 75%).
