16 Core Fiber Optic Distribution Box Black PC+ABS+PE Splitter and Fiber Splicing 1*16

Description:

Small size and light weight for easy installation compact body

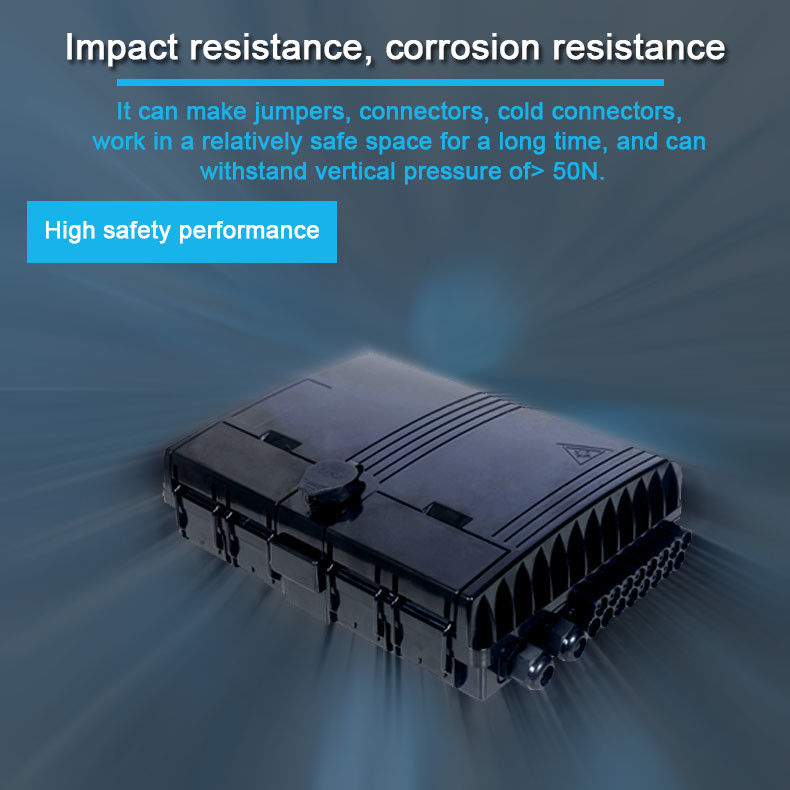

·Wall mounted with mechanical protection function

·Available for FC,SC,ST,LC adatpers

·Fiber can get in from bottom or side

·Anti-UV, Ultra violet resistant and rainfall resistant

Features:

Item	KXT-16A/B

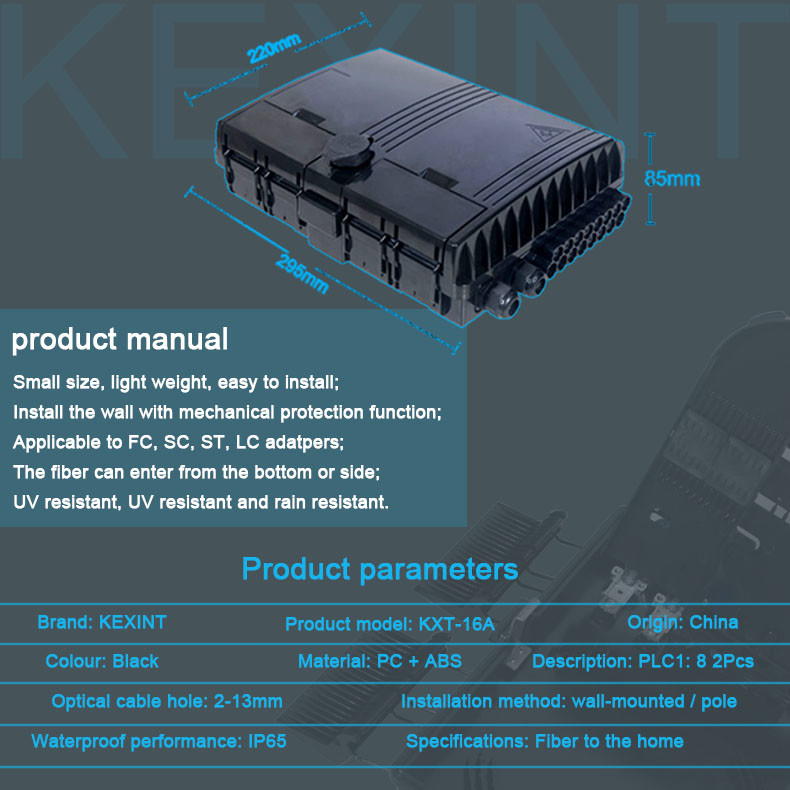

Size(HxWxD)mm	295x220x85
Cable diameter(mm)	0.9 , 2.0 , 3.0
Cable ports	16
Adapter ports	16
Max capacity of splice	16
Suitable Adapter	FC,SC,LC,E2000
Materials	PC
EnvironmentalTemperature(℃)	－40～80

1,Environmental requirement

Working temperature:-40℃～+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2,Main technical datasheet

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:＞1000 times

3,Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2×10⁴ MΩ/500V(DC)；

IR≥2×10⁴ MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover；U≥3000V

Configuration table:

Table 1 Model and configuration

Model	Description	Size(Pic 1)A*B*C(mm)	Max Capacity	Installation Size(Pic 2) D*E (mm)	Into the largest cable diameter (mm)	Cable outlet size (mm)
KXT-8B-1	Distribution Box	250*190*72	8	130*82	16	2~4.6
KXT-16A/B	Distribution Box	293*219*84	16	155*82	16	2~4.6

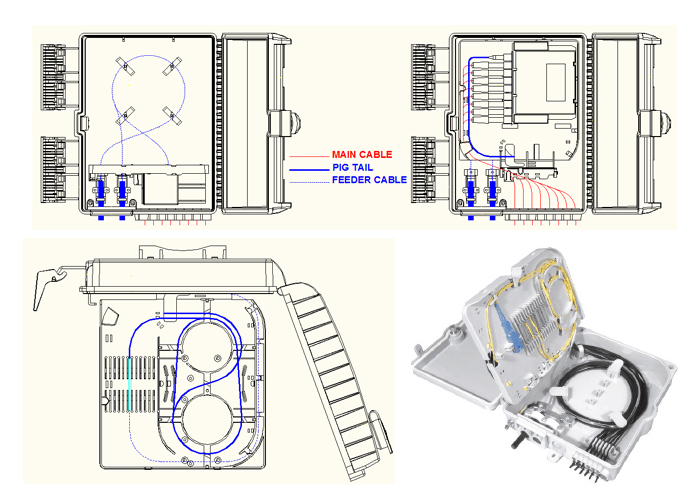

Site installation:

Installation:

1．Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.(Pic 6)

2．Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole .

Accessories:

1. Users' Manual*1.

2. Key*1.

3. Accessories Bag * 1

5. Easy pole ring*2,M6*20mm Bolt*2(Option)
