16 Core Fiber Optic Distribution Box Gray PC+ABS+PE Splitter and Fiber
Splicing 1×16 Wall Hanging Pole Installation
Description:
Small size and light weight for easy installation compact body
·Wall mounted with mechanical protection function
·Available for FC,SC,ST,LC adatpers
·Fiber can get in from bottom or side
·Anti-UV, Ultra violet resistant and rainfall resistant
Features:
1,Total enclosed structure
2,Material:PC+ABS+PE,wet-proof,waterproof,dust-proof,anti-aging,protection
level up to IP65.
3,Clamping for feeder cable and drop cable ,fiber
splicing,flxation,storage,distribution···etc,all in one.
4,Cable,pigtail,patch cords are running through own path without
disturbing each other,cassette type SC/FC/PLC adaptor installation
5,Distribution panel can be flipped up,feeder cable can be placed
in a cup-joint way,easy for maintenance and installation.
6,Cabinet can be installed by the way of wall-mounted,suitable for
both indoor and outdoor uses.
Specifications:
| Item | KXT-16F |
| Size(HxWxD)mm | 320*240*100 |
| Out Cable diameter(mm) | 0.9 , 2.0 , 3.0 , 4.2 , 4.8 |
| Cable ports | 16 |
| Adapter ports | 16 |
| Max capacity of splice | 16 |
| Suitable Adapter | FC,SC,LC,E2000 |
| Materials | PC |
| EnvironmentalTemperature(℃) | －40～80 |
1, Environmental requirement
Working temperature:-40℃～+85℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure:70KPa～106Kpa
2, Main technical datasheet
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:＞1000 times
3, Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation
resistance is less than 2×104 MΩ/500V(DC)；
IR≥2×104 MΩ/500V
The withstand voltage between grounding device and cabinet is no
less than 3000V(DC)/min, no puncture,no flashover；U≥3000V
Configuration table:
Table 1 Model and configuration
| Model | Description | Size(Pic 1)A*B*C(mm) | Max Capacity | Installation Size D*E (mm) | Into the largest cable diameter (mm) | Cable outlet size (mm) |
| KXT-16E | Distribution Box | 320*240*100 | 24 | 190*298 | 24 | 2~4.6 |
| KXT-16F | Distribution Box | 320*240*100 | 16 | 190*298 | 16 | 2~4.6 |

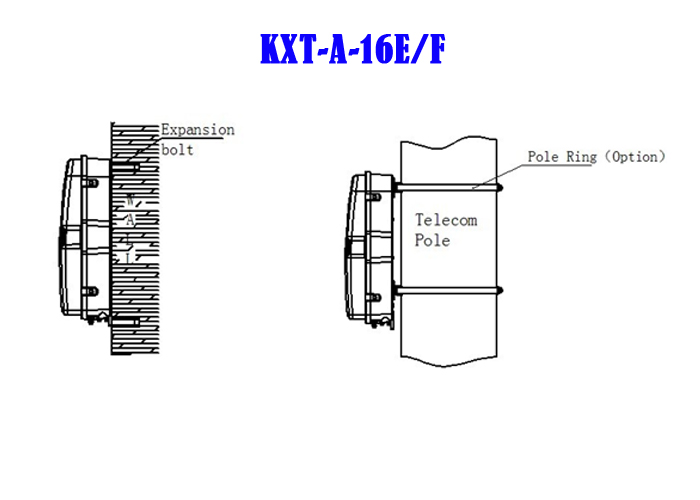

Site installation:
Installation:
1．Wall-mounted installation
Drill 4 holes over the wall based on the size in table 1,place the
expansion bolt Φ7.5*40,place the box to match up the holes and use
bolt to fasten.
2．Pole-mounted installation
Fix 1 set of the easy pole ring to the telecom pole .
Accessories:
1. Users' Manual*1.
2. Key*1.
3. Accessories Bag * 1
4. Easy pole ring*2,M6*20mm Bolt*2(Option)
Packing, transportation and storage
This equipment packaging is moisture-proof and earthquake-proof.
The accessories are packed first plastic
bags, then into the boxes with plastic bags for sealing. There are
moisture-proof and earthquake direction signs
outside the boxes.
It can’t be inverted in the transport and be free from rolling when
carrying. Please load carefully and
prevent the collision. You should prevent it from heavy rain before
installation. The temperature in the
transport should be controlled between-35℃ to +55℃.
The excessive accumulation of goods should be stored on the
cartons. The treasury should away from the
erosion of corrosive gas equipment and the temperature should be
below 45℃ and higher than -5℃, and
relative temperature should not be high in long-term(generally less
than 75%).
