    Black Fiber Optic Distribution Box , Fiber Optic Enclosures Wall Mount

    Ask Lasest Price
    Brand Name : KEXINT
    Model Number : KXT-16D
    Certification : CE ROSS ISO 9001
    Price : Negotiation
    Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram
    Delivery Time : 8
    • Product Details
    • Company Profile

    Black Fiber Optic Distribution Box , Fiber Optic Enclosures Wall Mount

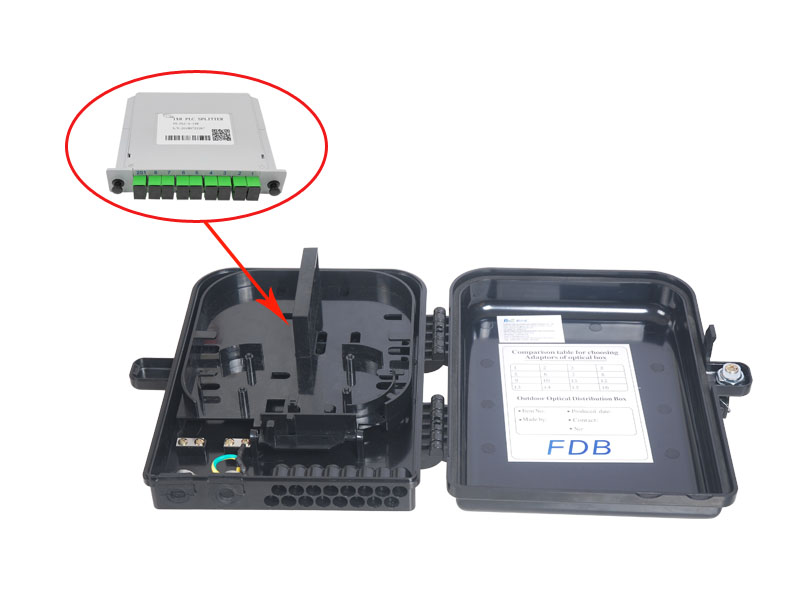

    Black Fiber Optic Distribution Box Terminal box 16 cores Out door


    Description:

    The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.

    Features:

    1, Total enclosed structure
    2, Material:PC+ABS,wet-proof,waterproof,dust-proof,anti-aging,protection level up to IP65.
    3, Clamping for feeder cable and drop cable ,fiber splicing,flxation,storage,distribution···etc,all in one.
    4, Cable,pigtail,patch cords are running through own path without disturbing each other,cassette type SC/FC/PLC adaptor installation
    5, Distribution panel can be flipped up,feeder cable can be placed in a cup-joint way,easy for maintenance and installation.
    6, Cabinet can be installed by the way of wall-mounted,suitable for both indoor and outdoor uses.

    Specifications:

    ItemKXT-16C/D
    Size(HxWxD)mm300*230*75
    Out Cable diameter(mm)0.9 , 2.0 , 3.0 , 4.2 , 4.8
    Cable ports16
    Adapter ports16
    Max capacity of splice16
    Suitable AdapterFC,SC,LC,E2000
    MaterialsPC
    EnvironmentalTemperature(℃)-40~80

    1, Environmental requirement

    Working temperature:-40℃~+85℃

    Relative humidity:≤85%(+30℃)

    Atmospheric pressure:70KPa~106Kpa

    2, Main technical datasheet

    Insertion loss:≤0.2dB

    UPC return loss:≥50dB

    APC return loss:≥60dB

    Life of insertion and extraction:>1000 times

    3, Thunder-proof technical datasheet

    The grounding device is isolated with the cabinet, isolation resistance is less than 2×104 MΩ/500V(DC);

    IR≥2×104 MΩ/500V

    The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V


    Configuration table:

    Table 1 Model and configuration

    ModelDescriptionSizeA*B*C(mm)Max Capacity

    Installation Size

    D*E (mm)

    Into the largest cable diameter (mm)

    Cable outlet size

    (mm)

    KXT-16CDistribution Box300*230*7516190*298162~4.6
    KXT-16DDistribution Box300*230*7516190*298162~4.6

    Black Fiber Optic Distribution Box , Fiber Optic Enclosures Wall Mount


    Site installation:



    Installation:

    1.Wall-mounted installation

    Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.

    2.Pole-mounted installation

    Fix 1 set of the easy pole ring to the telecom pole .


    Accessories:

    1. Users' Manual*1.

    2. Key*1.

    3. Accessories Bag * 1

    4. Easy pole ring*2,M6*20mm Bolt*2(Option)


    2
