1 ~ 24 core Single Mode Armored Fiber Optic Cable Computer Room 0.9 Tube SOS Indoor Indoor

Description:

Specifically for field wiring and complexity of environment, designed for repeated retractable conditions application, light weight, anti-tension, compression and strong; softness; easy to bend; abrasion, flame retardant, suit for widely range temperature. Communication systems for military field wiring or repeated rapid retractable; radar, aviation and ship wiring; oilfield, mine, port, broadcast live on television, communication line repair, and other harsh conditions of the occasion

Features:

a. Wiring compact all-dielectric structure, the inner sleeve is 0.9mm fiber, the cable has a high strength-weight ratio, allowing for quick wiring;

b. High-strength fiber composite structure secondary coating offers the best performance and minimum temperature of the additional attenuation cables in harsh conditions to ensure the reliability and service life;

c. Large area of aramid reinforced fiber optic cable to provide a high mechanical strength;

d. A special high-strength, flexible type central reinforcing element, to ensure fiber strength and bending properties;

e. Small tight pitch SZ stranded helical twisted fibers and aramid fibers single combined to ensure the field fiber optic cable has greater tensile strain capacity;

f. Environmental friendly, Comply with RoHS.

Applications:

1.Military Communications;

2.Coal, oil, natural gas, etc.

3.Geological exploration Communications;

4.Broadcast television;

5.Emergency reopened optical fiber communication.

Technical parameter:

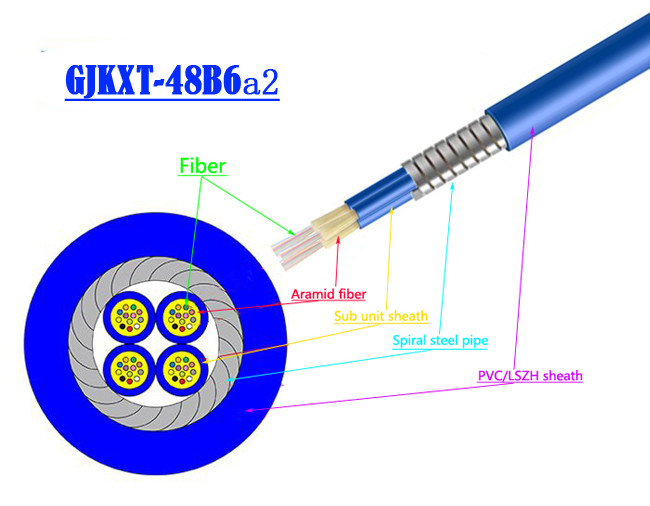

Planar structure:

Packing:

a Nominal shipping length of the cable will be 1~3 km. Other length is also available if required by buyer.

b Each length of the cable will be wound on a separate strong wooden.

c Both ends of the cable will be sealed with a suitable heat shrinkable cap to prevent the entry of moisture during transportation and storage.

d The cable end will be securely fastened to the drum to prevent the cable from coming loose during transit or becoming loose during placing operations.

e Circumference battens will be secured between the outer edges of the flange to protect the cable against damage during shipment and storage.

f For testing purposes, the inner end of the cable will be recessed into a slot in the drum flange . A minimum length of one meter of cable at the inner end will be accessible.

g The cable will be shipped on drums designed to prevent damage to the cable during shipment and installation

h The minimum barrel diameter of the drum will be 30 times to the overall cable diameter.
