Outer Mini Fiber Optic Armoured Cable GYFXTH Aerial Communications
G657A2
A 250 μm fiber is placed in a loose tube made of a high modulus
material. The loose tube is filled with a thixotropic waterproof
compound, and a glass yarn (or aramid) is added to extrude a LSZH
outer sheath. A fiber optic cable that is mainly used for
horizontal deployment of wireless base stations. At the same time,
it can be used for building cable in integrated wiring, which is
suitable for pipe wiring when it is introduced indoors.
Non-Armored Optic Cable
[ GYFXTH]
- CABLE CONSTRUCTION

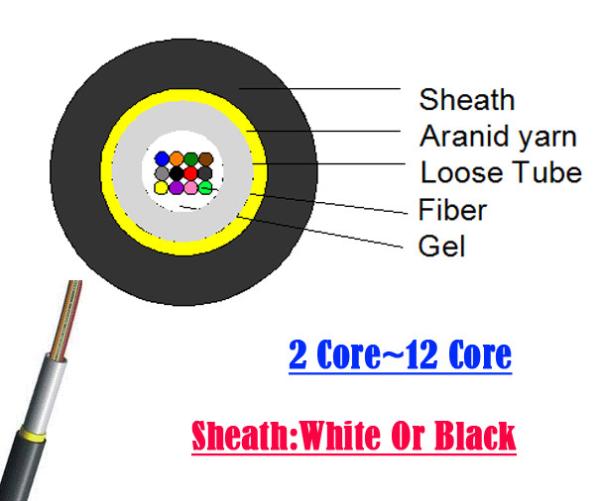

- CROSS SECTIONAL DIAGRAM
- STRUCTURE SPECIFICATION
| Items | DESCRIPTION |
| Fiber count | 2-6F | 8-12F |
| The Color Code of The fibers | Blue,Orange,Green, Brown, Gray, White/natural | Blue,Orange,Green, Brown, Gray, White/natural,Red, Black,
Yellow,Violet,Pink,Turquoise |
| Loose Tube | OD(mm): | 1.6±0.1 | 2.2±0.1 |
| Material: | PBT |
| Strength yarn | Aramid yarn |
| Sheath | Thickness: | Non. 0.5mm |
| Material: | LSZH |
| OD of cable (mm) | 3.0 | 4.5 |
| Net weight ( kg/km) | 10 | 23 |
2. FIBER IDENTIFICATION
| NO. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Fiber Color | Blue | Orange | Green | Brown | Slate | natural | Red | Black | Yellow | Violet | Pink | Aqua |
3. OPTICAL FIBER
3.1 Single Mode Fiber
| LTEMS | UNITS | SPECIFICATION |
| Fiber type | | G652D | G657A |
| Attenuation | dB/km | 1310nm ≤ 0.36 1550nm ≤ 0.22 |
| Chromatic Dispersion | ps/nm.km | 1310nm≤ 3.5 1550nm≤ 18 1625nm≤ 22 |
| Zero Dispersion Slope | ps/nm2.km | ≤ 0.092 |
| Zero Dispersion Wavelength | nm | 1300 ~ 1324 |
| Cut-off Wavelength (lcc) | nm | ≤ 1260 |
Attenuation vs. Bending (60mm x100turns) | dB | (30mm radius,100ring )≤ 0.1 @ 1625nm | (10mm radius,1ring)≤ 1.5 @ 1625nm |
| Mode Field Diameter | mm | 9.2 ± 0.4 at 1310nm | 9.2 ± 0.4 at 1310nm |
| Core-Clad Concentricity | mm | ≤ 0.5 | ≤ 0.5 |
| Cladding Diameter | mm | 125±1 | 125±1 |
| Cladding Non-circularity | % | ≤ 0.8 | ≤ 0.8 |
| Coating Diameter | mm | 245±5 | 245±5 |
| Proof Test | Gpa | ≥ 0.69 | ≥ 0.69 |
3.2 Multi Mode Fiber
| LTEMS | UNITS | SPECIFICATION |
| 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4-550 |
| Fiber Core Diameter | μm | 62.5±2.5 | 50.0±2.5 | 50.0±2.5 |
| Fiber Core Non-circularity | % | ≤6.0 | ≤6.0 | ≤6.0 |
| Cladding Diameter | μm | 125.0±1.0 | 125.0±1.0 | 125.0±1.0 |
| Cladding Non-circularity | % | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating Diameter | μm | 245±10 | 245±10 | 245±10 |
| C0at-Clad Concentricity | μm | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating Non-circularity | % | ≤8.0 | ≤8.0 | ≤8.0 |
| Core-Clad Concentricity | μm | ≤1.5 | ≤1.5 | ≤1.5 |
| Attenuation | 850nm | dB/km | 3.0 | 3.0 | 3.0 |
| 1300nm | dB/km | 1.5 | 1.5 | 1.5 |
| OFL | 850nm | MHz﹒km | ≥160 | ≥200 | ≥700 | ≥1500 | ≥3500 |
| 1300nm | MHz﹒km | ≥300 | ≥400 | ≥500 | ≥500 | ≥500 |
| The biggest theory numerical aperture | / | 0.275±0.015 | 0.200±0.015 | 0.200±0.015 |
4.Mechanical and Environmental Performance of the Cable
| NO. | ITEMS | TEST METHOD | ACCEPTANCE CRITERIA |
| 1 | Tensile Loading Test
| #Test method:IEC 60794-1-E1 -. Long-tensile load:150N -. Short-tensile load:500N -. Cable length:≥50m | -. Attenuation increment@1550nm:≤0.1dB -. No jacket cracking and fiber breakage |
| 2 | Crush Resistance Test | #Test method:IEC 60794-1-E3 -.Long load:100 N/100mm -.Short load:500 N/100mm Load time:1 minutes | -. Attenuation increment@1550nm:≤0.1dB -. No jacket cracking and fiber breakage |
| 3 | Impact Resistance Test | #Test method:IEC 60794-1-E4 -.Impact height:１ｍ -.Impact weigh: 450ｇ -.Impact point:≥5 -.Impact frequency:≥3/point | -. Attenuation increment@1550nm:≤0.1dB -. No jacket cracking and fiber breakage |
| 4 | Repeated Bending | #Test method:IEC 60794-1-E6 -.Mandrel diameter:20D (D = cable diameter) -.Subject weight:15kg -.Bending frequency:30 times -.Bending speed:2s/time | -. Attenuation increment@1550nm:≤0.1dB -. No jacket cracking and fiber breakage |
| 5 | Torsion Test | #Test method:IEC 60794-1-E7 -.Length:1m -.Subject weight:25kg -.Angle:±180 degree -.Frequency:≥10/point | -. Attenuation increment@1550nm:≤0.1dB -. No jacket cracking and fiber breakage |
| 6 | Drop Performance
| #Test method:IEC 60794-1-E14 -.Testing length:30cm -.Temperature range:70±2℃ -.Testing Time:24 hours | No filling compound drop out |
| 7 | Temperature | Operating:-40℃~+60℃ Store/Transport :-50℃~+70℃ Installation -20℃~+60℃ |
5.FIBER OPTIC CABLE BENDING RADIUS
Static bending:≥10 times than cable out diameter
Dynamic bending:≥20times than cable out diameter.
6.PACKAGE AND MARK
6.1 PACKAGE
Not allowed two length units of cable in one drum, two ends should
be sealed,. Two ends should be packed inside drum, reserve length
of cable not less than 2 meters.
6.2 MARK
Cable Mark: Brand,Cable type,Fiber type and counts,Year of
manufacture,Length marking .
7. TEST REPORT
Test report and certification supplied.
FAQ:
1. Is there any oil in the optical cable?
According to the actual needs of customers, we do single core and
dual cores. Normally, there is no oil, but in special environments,
this kind of optical cable requires a loose tube with optical fiber
oil inside.
2. Is the 0.9 sheath inside the optical cable?
The FTTH solution we made for customers in the UK and South Africa
contains 0.9 sheath and fiber oil.
3.Is the optical cable lightning protection? Will it conduct
electricity?
This kind of optical cable is a pure non-metal optical cable
without metal inside, and can be used in aerial or antenna.
4.Does this optical cable have UV resistance?What is the service
life of the optical cable?
Our optical cables are black, all made of new materials, have
strong UV resistance, and can be used for more than 25 years.
5. What is the outer diameter of the optical cable?
The outer diameter of the optical cable can be produced at
2.0/2.6/2.8/3.0~5.0mm.Belongs to mini optical cable.
