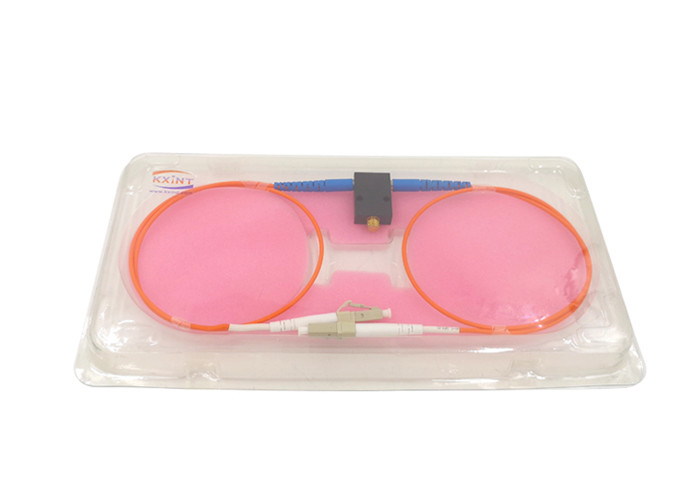

Single Mode Simplex Inline Variable Fiber Optic Attenuators 0-30db With Connector LC/UPC

1 Single Mode Variable Optical Attenuators allow the user to manually vary the attenuation of the signal in the fiber as it is transmitted through the device. These VOAs can be used to to precisely balance the signal strengths in fiber circuits or to balance an optical signal when evaluating the dynamic range of the measurement system. The maximum specified attenuation is achieved within 10 turns of the adjustment screw.

2 All in-line VOAs have single mode fiber pigtails with a Ø3 mm jacket. The VOAs are offered unterminated or terminated with 2.0 mm narrow key LC/SC/ST/FC/PC orLC/SC/ FC/APC connectors.

3 Each attenuator has a lens to collimate the light from the input fiber. A blocking device or window can be manually adjusted by a screw

4 Then, a second lens is used to couple light into the output fiber. Thus, the coupling efficiency is changed until the desired attenuation is obtained.

      KEXINT which was founded in the year 2007 is a high-tech enterprise specialized in telecom communication network equipment research and development (R&D), manufacturing, marketing, and providing application solutions and technical services .

     Its main products include fiber optic cable, fiber distribution box, fiber optical patchcord , MPO/MTP , and optical splitter (PLC/FBT/WDM), fast connecter , fiber optic adapters, fiber optic attenuators ,We have more than 11 years of experience in passive fiber optic products . In 2016 , we also established OLT/ONU R&D and production. Products are widely used in telecommunications, broadcasting and other fields. Television, power engineering, and other industries. The main market distribution: Russia and other CIS, South Africa, Europe, South America, etc. The company promises: quality and integrity first

 Rich experiences in passive production of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.
