Telecommunication FC To SC Fiber Adapter Aux Connections Type
Saving Panel Space
Product introduction

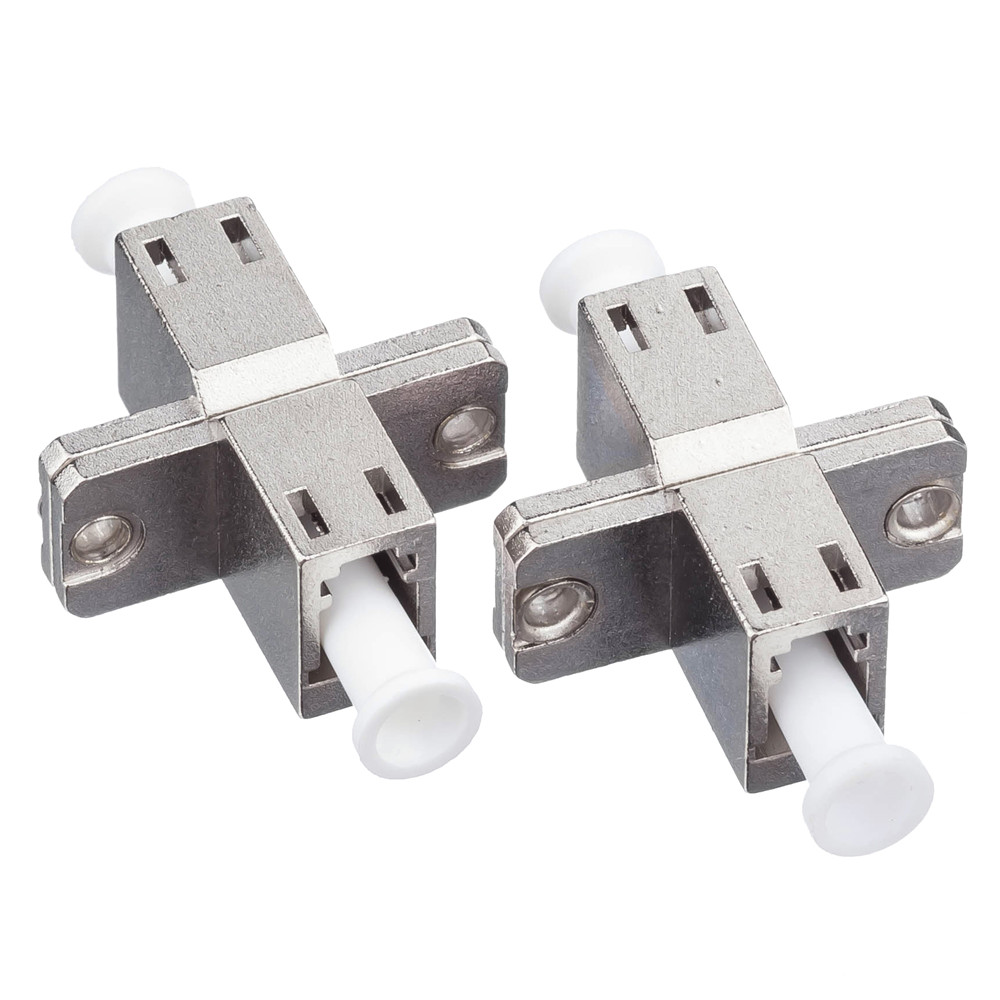

The male-to-female fiber optic adapters inexpensively adapt
connector interfaces to new equipment, upgrade distribution panels
and eliminate the need to re-terminate cable assemblies.
Application
* Telecommunication
* CATV
* LAN & WAN
* Network
* Broadband
* FTTP
Features
* Single mode and Multimode
* Zirconia sleeves or Phosphor bronze sleeves
* NTT standard compatible
* Available without flanges or with flange for duplex,
Saving panel space
* SC2 8Port high density for patch panel mount applications
* Meet JIS5974 and bellcore GR-326 standard
* Compliant with IEC874-14 & IEC874-19
* All parts compliant with ROHS
Product Specification
| Parameter | Unit | LC, SC, FC, ST |
| SM | MM |
| PC | UPC | APC | PC |
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 |
| Repeatability | dB | ≤0.2 |
| Durability | Time | >1000 |
| Operating Temperature | °C | -40~75 |
| Storage Temperature | °C | -45~85 |
Pictures
1. Low insertion loss
The fibers are connected by an adapter through an internal open
sleeve. We offer adapters in a variety of shapes and performances
to ensure the connection between the fiber jumpers.
2. Good repeatability
Widely used in optical fiber distribution frame (ODF), fiber optic
instrument table, fiber optic LAN, etc.
3. Good isolation
The signal field is electrically isolated from the main control
terminal to prevent accidental loss of the main control terminal
Our advantages:
1.Good reply: Your inquiry related to our products or price will be
replied within 24 hours.
2.OEM&ODM: We can help you to design or put your logo and
company name into products.
3.Remote Technical support&Full Technical Document
4.Warranty: 1 year warranty( While the warranty is not responsible
for those broken by violence or updated with other brands.)
5.English software, English Indicator
6.Professional, Very competitive price
7.Large Stock, Fast Delivery
8.Quality Assurance
