KEXINT FTTH GJYXFCH Drop Cable Fiber Optic Patch Cord SM Sinplex
With SC/APC-LC/APC Connector
A fiber optic patch cord is a fiber optic cable capped at either
end with connectors that allow it to be rapidly and conveniently
connected to CATV, an optical switch or other telecommunication
equipment. Its thick layer of protection is used to connect the
optical transmitter, receiver, and the terminal box. This is known
as "interconnect-style cabling". FTTH Drop cable patch cord are
used for linking the equipment and components in the fiber optic
network. This GJYXFCH drop cable is single core outdoor
self-supporting cable, the fiber is G657A1 or G652D, the material
of jacket is LSZH, the strengthen member is three phosphating steel
wire or FRP strengthen, the cable can be laid by aerial or duct.
This type of drop cable is single fiber, three phosphating steel
wire or FRP strengthen, we can provide 20m 30m 50m 80m 100m 150m
200m 300m 500m length drop cable patch cord.
Applications:
1. Local Area Network (LAN)
2. Data communication network
3. Telecommunication optical transmission network
4. Optical access network(OAN)
5. Active device termination
6. Fiber optics data transmission
7. Test Equipment and CATV
8. Gigabit Ethernet

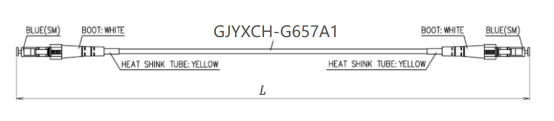

Cable structure:
Cable Parameter:
| Item | Technology parameter |
| Cable specification | GJYXCH-1G657a1 |
| Fiber color | Nature (or customize) |
| Fiber type | 9/125 (G657A1) |
| Sheath color | Black |
| Sheath material | LSZH |
| Coppered Steel wire diameter (mm) | 0.45 |
| Steel wire diameter (mm) | 1.0 |
| Cable dimension (mm) | 5.2(±0.1)*2.0(±0.1) |
| Cable weight (Kg/km) | 21 |
Min. bending radius (mm) (Along the cable flat direction) | 15(static) ;30(dynamic) |
| Attenuation (dB/km) | ≦0.4 at 1310nm, ≦0.3 at 1550nm |
Temperature Dependence Induced Attenuation (－40℃ to ＋60℃) (dB/km) | ≤0.04 |
| Short tension (N) | 600 |
| Short crush (N/100mm) | 2200 |
| Operation temperature (℃) | -40~+70 |
| Installation temperature (℃) | -5~+60 |
| Transportation and storage temperature (℃) | -40~+70 |
Note: the product is accord with the instruction of EU RoHS.
Connector Specification:
1. General Requirements:
| Specification | Unit | SC, FC, LC | ST, MU, MT-RJ,SMA | MTP,MPO | E2000 |
| Single-mode | Multimode | Single-mode | Multimode | Multimode | Single-mode | Single-mode |
| UPC | APC | PC | UPC | PC | PC | APC | UPC | APC |
| Insertion loss | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.7 | ≤0.75 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥50 | ≥60 | ≥30 | ≥50 | ≥30 | ≥25 | ≥45 | ≥55 | ≥75 |
| Wavelength | nm | 1310/1510 | 1310/1510 | 1310/1510 | 1310/1510 |
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 |
| Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 |
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
2. Special Requirements:
| Type | Standard,Master |
| Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
| Fiber | Singlemode/Multimode |
| 50/125, 62.5/125 (Multimode) OM2&OM1 |
| 50/125, 10G (Multimode) OM3 |
| Cable | Simplex, Duplex |
| Φ3.0mm, Φ2.0mm, Φ0.9mm |
| PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) |
| ≤ 0.25dB (For Singlemode Standard) |
| ≤ 0.25dB (For Multimode) |
| Tested by JDS |
Return Loss
(Singlemode) | UPC ≥ 50dB |
| SPC ≥ 55dB |
| APC ≥ 60dB (typ.65dB) |
| Tested by JDS |
| Repeatability | ±0.1dB |
| Operating temperature | -400C to 850C |
Geometry Requirement
( Singlemode) | Ferrule Endface Radius |
| 7mm ≤ R ≤ 12mm (For APC) |
| 10mm ≤ R ≤ 25mm (For Standard) |
| Apex Offset ≤ 30 μm (For Master) |
| Apex Offset ≤ 50 μm (For Standard) |
| Undercut -50nm ≤ U ≤ 50nm |
| Tested by DORC |
Geometry Requirement
( Singlemode) | Ferrule Endface Radius |
| 7mm ≤ R ≤ 12mm (For APC) |
| 10mm ≤ R ≤ 25mm (For Standard) |
| Apex Offset ≤ 30 μm (For Master) |
| Apex Offset ≤ 50 μm (For Standard) |
| Undercut -50nm ≤ U ≤ 50nm |
| Tested by DORC |

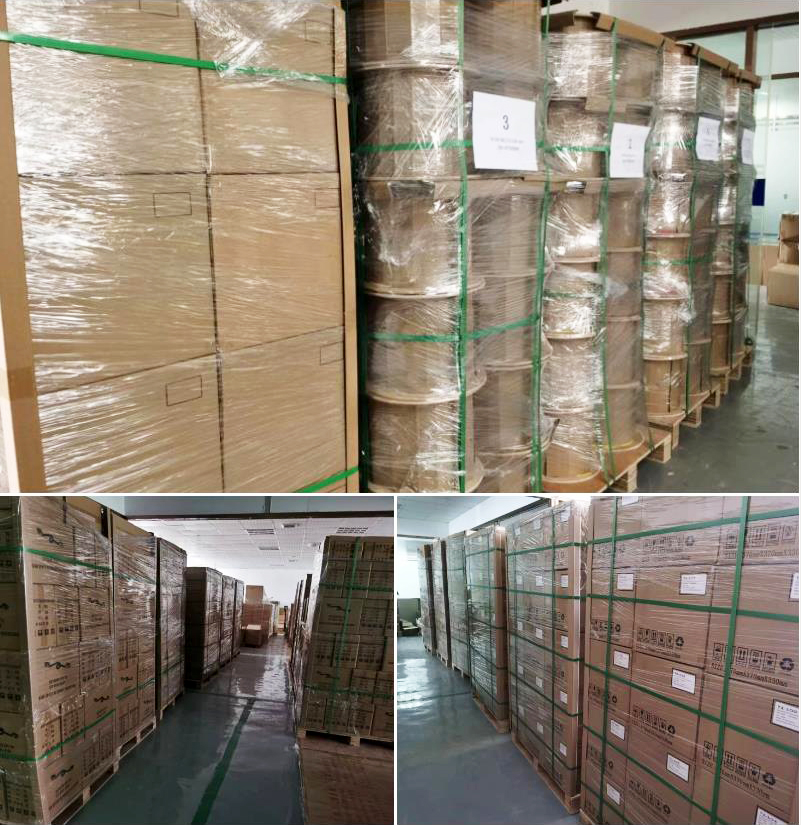

Packaging:
