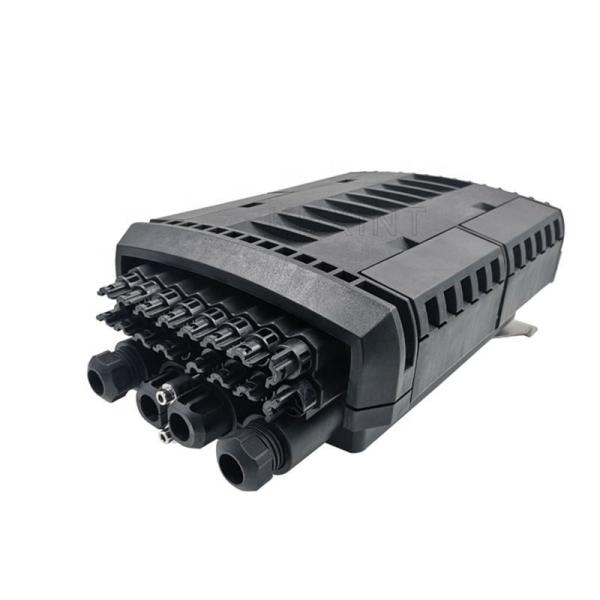

KEXINT FTTH KXT-C-01 16 Cores Outdoor IP68 Waterproof Black Fiber
Optic Distribution Box
Senco Usconec Corning YOFC SC FC ST
KXT-C-01 fiber access termination closure is able to hold up to 16
subscribers and 96 splicing points as closure. It is used as a
splicing closure and a termination point for the feeder cable to
connect with the drop cable in FTTx network system. It integrates
fiber splicing, splitting, distribution, storage and cable
connection in one solid protection box.
Features:
1. Integrated with flap-up splice cassette and 16 pcs adapter
plate.
2. IP68 with nice sealing.
3. Pole mounting or wall mounting are optional.
4. 2 pcs of 1*8 splitter can be installed as an option.
5. middle 2 inlet port for un-cut cable diameter from 10−17.5 mm.
6. 2 other output cable port for cable diameter from 8-17.5 mm.
7. 16 small outlet cable ports for cable diameter less than 4 mm.
8. Accommodates both cable glands as well as tie-wraps.
9. Lock provided for extra security.
10. Adapter slots used - No screws and tools needed for installing
adapters.
11. ABS material used ensures the body strong and light.
12. Space saving! Double-layer design for easier installation and
maintenance.
Fiber optic distribution box applied to FTTH that links in the
access of the terminal system, especially suitable for the outdoor
wall hanging or hoop type.
Application:
1. Wall mounting and pole mounting installtion;
2. FTTH pre-installation and filed installation;
3. 4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and
outdoor figure 8 FTTH self-supporting drop cable.
| Item | Value |
| Product No. | KXT-C-01 |
| Available Adapter | FC, SC, LC |
| Size(H*W*D) | 385*245*130 mm |
| IP Level | IP 68 |
| Cable Ports | 4 into 16 out |
| Max Splice Capacity | 96 fibers |
| Material | ABS+PC |
