KEXINT FTTH KXT-R-12 Fiber Optical Splice Closure Customizable
Fiber Connect Box ODM Waterproof 12 Ports
KEXINT FTTH KXT-R-12 ODM Waterproof 12 Ports Fiber Optical Splice
Closure
KXT-R-12 is a new ecomomic fiber distributed solution for outdoor
use. Compare traditional products, it is easy to operate and has
high compatibility. It can be used for wall-mounting, aerial
installation or holding pole installation, based on different
situation. It is not only used in FTTH field, but also in FTTA or
other harsh environment field.
KXT-R-12 is used in a wide range of environments, with overhead,
wall hanging, and underground burial, which can be applied to any environment in the
wild. The design is small, beautiful, simple to operate, and directly connected to the waterproof
connector. Can match a variety of connectors, including: Huawei, Corning (OptiTap), PDLC,FULLAXS.
Product Features:
1. High compatibility: can be assembled ODVA, Hconn(OptiTap™
compatible), Mini SC, AARC, PTLC, or PTMPO
2. Factory-sealed or field assembly
3. Strong enough: working under 1200N pulling force long term
4. From 2 to 12 ports for single or multifiber harsh connectors
5. Available with PLC or splice sleeve for fiber divide
6. IP67 waterproof rating,Wall mounting, aerial installation or holding pole installation
7. Decreased angle surface and height make sure no connector
interfering when operating
8. Meet IEC 61753-1 standard
9. Cost effective: save 40% operating time
Product Specification:
Dimensions L*W*H | 365x137x90 mm(Without cover) 375x142x120 mm(With cover) |
| Ingress Protection | IP68 |
| Temperature Range | -40 to + 80 °C |
| Cable Strength Member | Armoured or Non-armoured |
| Cable Type | Hybrid or non-hybrid |
| Round Cable OD | 5.0 mm to 14 mm |
| Flat Cable Dimension | 4.6x8.9 mm |
| Cable Jacket Material | LSZH, PE or TPU |
| Bending Radius | 20D |
| Cable Crush Resistance | 200 N/cm long term |
UV Resistance | i zuuiN long lerm ISO 4892-3 |
| Fire Protection Rating | UL94-V0 |
| Number of PLC | 1 to 2 pcs |
| Number of Fusion Protection Sleeve | 1 to 24 pcs |

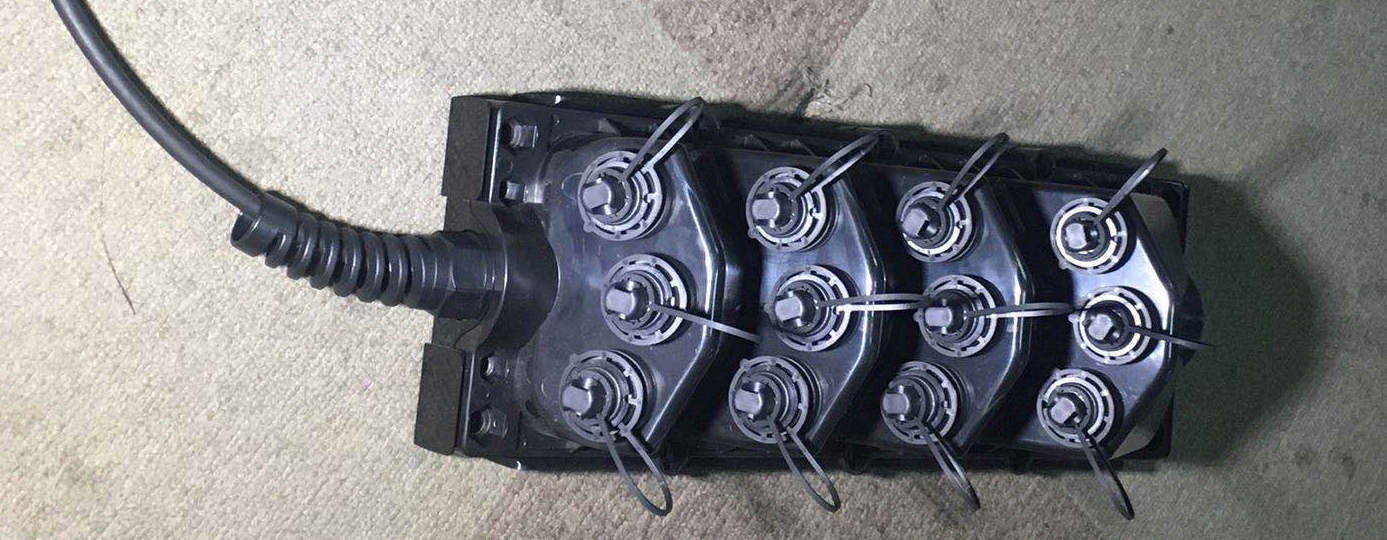

Physical Picture:
FAQ:
1. Are you the real factory?
Yes, we are the real factory with 11 years' history.
2. Are you trading company or manufacturer?
We are manufacturer with own factories.
3. Product quality guarantee period?
25 years' Guarantee for fiber optic cable.
4. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables; FTTH Drop
cables; ADSS; Fiber Optic Distribution Box Indoor armored patch
cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical
patch cord and so on.
5. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but do not pay the
cost of freight.
6. What is your terms of payment?
Payment≤1000 USD,100％ in advance; payment>1000USD, 30％ T/T in
advance, balance before shipment.
7. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Otherwise, it
is 15-20 days if the goods are not in stock. It's according to the
quantity of needs.
8. Can I negotiate the prices?
Yes, we may consider diascounts for multiple container load of
goods.
9. What is your terms of packing?
Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent, we can pack the
goods in your branded boxes after getting your authorization
letters.
10. How much will the shipping charges be?
It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
11. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings and build
the molds and fixtures.
12. What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU, DDP.
13. How about the warranty?
There are 12 months for the warranty.While the warranty is not
responsible for those broken by violence or uopdated with other
brands.
14. Can I visit you?
Sure, one of our factories is in Shenzhen, China. Please contact us
to make an appointment.
