    KEXINT FTTH GJSFJV Indoor Bundled Multi-core Steel Tape Armored Fiber Optical Cable

    Ask Lasest Price
    Brand Name : KEXINT
    Model Number : GJSFJV
    Certification : CE Iso-9001 Ross UL
    Price : 124.36+$+km
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
    Supply Ability : 1000+km+Day
    Delivery Time : 8
    • Product Details
    • Company Profile

    KEXINT FTTH GJSFJV Indoor Bundled Multi-core Steel Tape Armored Fiber Optical Cable

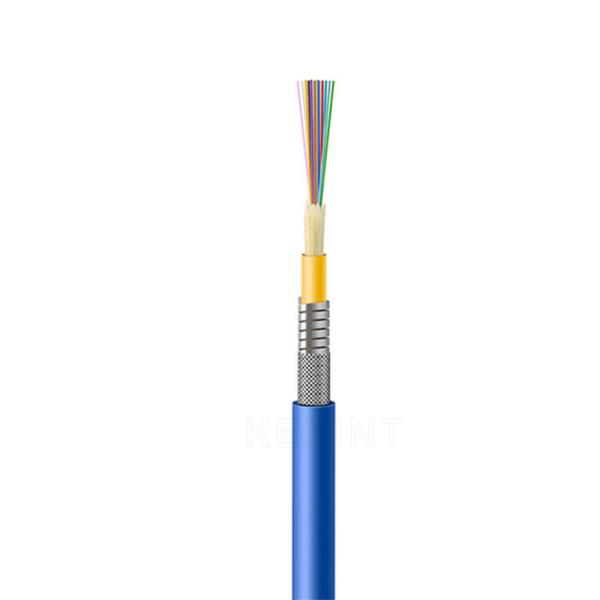

    The structure of the optical cable is to twist together a ф900μm or ф600μm tight-buffered optical fiber and multiple strands of aramid fiber, extrude a layer of PVC or LSZH inner sheath on the stranded surface, and wrap a layer of flat stainless steel wire armor outside the inner sheath. The surface is braided with stainless steel wire, and then extruded into a PVC or LSZH outer sheath.
    Features:

    1.Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.

    2.Bending radius is small, light weight, soft, flexible, easy to follow.

    3.Flat wire armored to improve the optical cable compression and anti-rat ability.

    4.Has good mechanical and environmental performance.

    5.Flame retardant or non-flame retardant outer jacket to provide good safety protection.


    Application:

    1. Various conventional connector products.

    2.Pigtail, jumper.

    3.Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.

    4.Optical connection of optical equipment, instruments, etc.

    5.Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.

    6.Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.

    7.The backbone of the tail cable, access to the equipment inside the building.

    8.Small installation space and occasional wiring.
    Specification
    item
    value
    Model Number
    GJSFJV
    Type
    Fiber Optic Cable
    Place of Origin
    China
    Brand Name
    KEXINT
    Number of Conductors
    ≥ 10
    Fiber Type
    SM/MM
    Jacket color
    Customized
    Outer Sheath
    LSZH /PVC
    Length
    Customized
    Tensile Strength
    300/750mm
    Allowable pressure
    200/1000 N / 100m
    Bending radius
    20D / 10D mm
    Certification
    CE/ROHS/ISO9001
    Storage temperature
    -60~+80℃
