PRODUCT DESCRIPTION

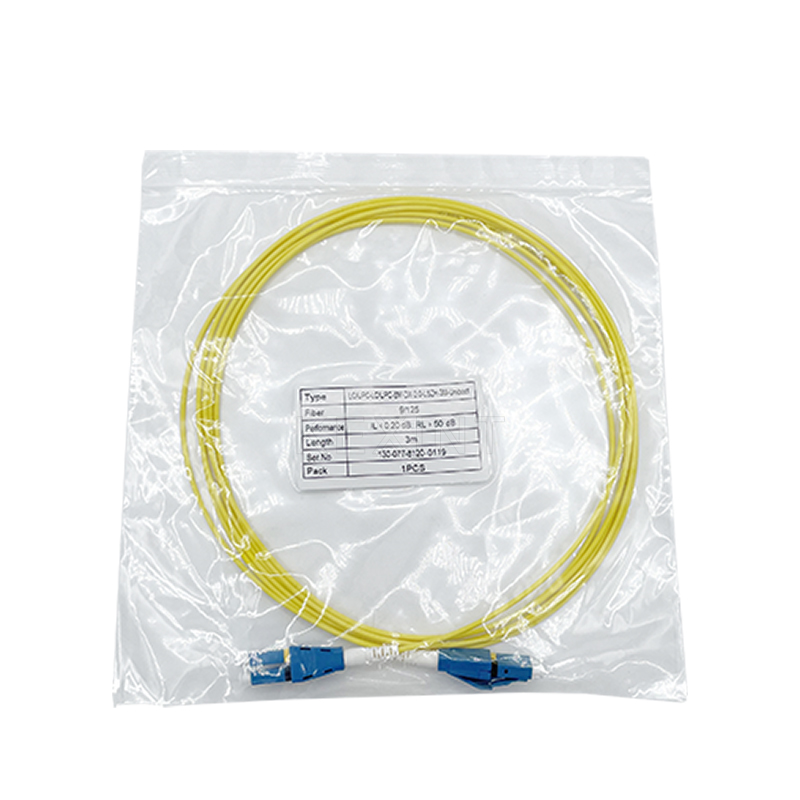

KEXINT FTTH LC/UPC UNIBOOT 2.0MM SM FIBER LSZH 3M DULPLEX FIBER OPTIC PATCH CORD
Data Center Corning Usconec Senco YOFC
LC uniboot fiber optic patch cords are constructed for duplex
transmission within a single 2.4mm or 3.0mm cable with two fibers
in one physical cable with a design that reduces the occupied space
on a patch panel by 50% when it connects two optical ports, having
to position only one fiber instead of two fibers.
LC uniboot cables are constructed for duplex transmission within a
single 2.4mm or 3.0mm cable with two fibers in one physical cable
with a design that reduces the occupied space on a patch panel by
50% when it connects two optical ports, having to position only one
fiber instead of two fibers. So the space requirement of cabling
can be significantly reduced by LC uniboot fiber patch cables.
The major advantage is given by the flexibility construction of the
end LC connectors. Their design, easily permit to switch the
polarity of the fibers only by maneuvering the connectors without
the need of a special tool. LC uniboot fiber patch cables with
push-plug tap are now available at KEXINT. This little change can
make easier finger access and a quicker latch release available,
and it can also help to connect or disconnect a single fiber patch
cable without affecting other surrounding links.
THE SPECIFICATION OF PRODUCT
THE STRUCTURE OF LC UNIBOOT CONNECTOR
• Data Centers
• Local Area Networks
• High-Density Applications
• Interconnects
• Cross-connects |
• Uniboot with a Single Housing
• Easy to Assemble and Use
• Low Insertion Loss and Back Reflection
• High Repeatability and Reliability
• Telcordia GR-326 Qualified |
THE SPECIFICATION OF THE PRODUCT
| Item | Contents | Unit | Value |
| Optical Fiber | / | / | 2 |
| Sub-unit | Strength member | / | Each subunit 930*3 Kevlar |
| Jacket color | / | Yellow |
| Jacket material | / | LSZH |
| Number | / | 1 |
| Diameter (mm) | mm | 2.0±0.1 |
| Sub-unit identification | / | 1# |
| Outer jacket | Diameter | mm | 2.0±0.2 |
| Material | / | LSZH |
| Color | / | Yellow |
| Jacket thickness | mm | 0.2±0.1 |
| Tensile performance | Short term | N | 250(fiber strain≤0.6%) |
| Long term | N | 120 |
| Crush | Short term | N/100mm | 1000 |
| Long term | N/100mm | 500 |
| Cable attenuation | dB/km | ≦ 1.5 at 1300nm, ≦ 3.5 at 850nm |
| Cable weight (Approx.) | kg/km | 35 |
WORKSHOP
APPLICATION
PACKAGE & DELIVERY
COMPANY PROFILE
Shenzhen Kexint Technology Co., Ltd, which was founded in the year 2007 is a high-tech enterprise
specialized in telecom communication network equipment research and
development (R&D), manufacturing,marketing, and providing
application solutions and technical services. Rich experiences in
passive production of fiber optical products ensure the reliable
stabilities of its high quality and excellent performance of its
goods. It obtains the good reputations al these years from
customers around the world for its short lead-time, fast
delivery,and timely after-services.
FAQ
Q1: Are you trading company or manufacturer?
A1: We are manufacturer with own factories.
Q2: Do you provide samples? Is it free or extra?
A2: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q3: What is your terms of payment?
A3: Payment≤1000 USD,100％ in advance;payment>1000USD, 30％ T/Tin
advance,balance before shipment.
Q4: How long is your delivery time?
A4: Generally it is 5-10 days if the goods are in
stock.Otherwise,it is 15-20 days if the goods are not in stock.It's
according to the quantity of needs.
Q5: Can I negotiate the prices?
A5: Yes, we may consider diascounts for multiple container load of
goods.
Q6: What is your terms of packing?
A6: Generally, we pack our goods in neutral white boxes and brown
cartons.If you have legally registered patent, we can pack the
goods in your branded boxes after getting your authorization
letters.
Q7: How much will the shipping charges be?
A7: It depends on the size of your shipment and the method of
shipping.We will offer the charge to you as you requested.
Q8: Can you produce according to the samples?
A8: Yes, we can produce by your samples or technical drawings and
build the molds and fixtures.
Q9: How about the warranty?
A9: There are 12 months for the warranty.While the warranty is not
responsible for those broken by violence or uopdated with other
brands.
Q10: What is your terms of delivery?
A10: EXW,FOB,CFR,CIF,DDU,DDP.
Q11: Can I visit you?
A11: Sure, one of our factories is in Shenzhen,China.Please contact
us to make an appointment.
