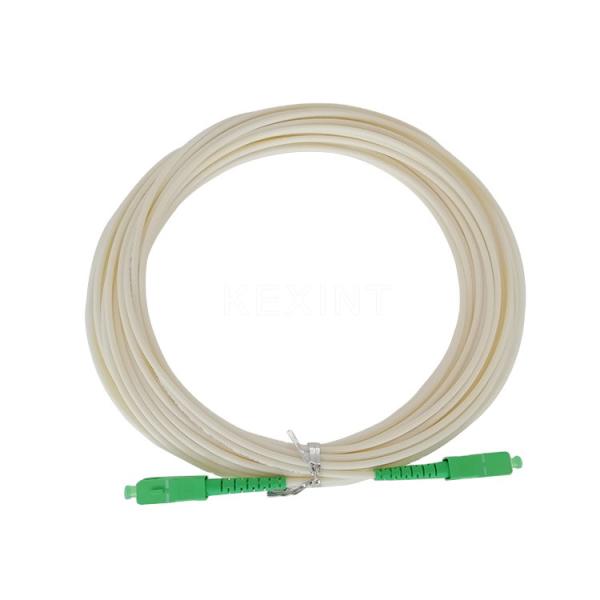

Fiber Optic Patch Cord All Kinds Of Optical Fibers And Connectors
Can Be Produced And Customized
Description
1. Fiber optic patch cords are available in all standard connector
styles, all standard fiber types and all standard cable
configurations to meet all your interconnection needs. They are
available in any length
2.The patch cord are factory terminated, assembled, tested and
inspected prior to shipment.
3.All patch cords are manufactured using OFNR riser grade cable,
LSZH, plenum, and premium customized specs available upon request,
and 100% factory tested to ensure the performance to meet
TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All
assemblies are tested to meet Telcordia GR326-CORE.
Feature:
1.Price-CompetitiveLow Insertion Loss & PDLFactory-terminated and
TestedFiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda
FiberConnector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTPPolishing
Options: PC/UPC/APCFeature Connector with Ceramic Ferrules
Applications
Optical fiber communication systems Optical fiber data transmission
Building network access Cabling system ODF
FTTX applications
Datasheet
| Mode | Single Mode ( SM) | Multi Mode (MM) |
| End-face Polish | UPC | APC | APC |
| Insertion Loss | Typical ≤0.2dB; Maximum ≤0.3dB | ≤0.25dB |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB |
| Repeatability | ≤0.1dB |
| Durability | ≤0.2dB (1000 times mating) |
| Tensile Strengh | >10kg |
| Temperature | ≤0.2dB (-40 ,+85 sustain 100 hours) |
| Humidity | ≤0.2dB (+25 ,+65 93 R.H.100 hours) |
| Optional Fiber Patch Cord Customize |
| Connector type | FC, SC, LC, ST |
| Ferrule End-face | UPC, APC |
| Fiber Core Type | Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um) |
| Fiber Count | Simplex, Duplex |
| Cable Diameter | φ3.0mm,φ2.0mm, φ0.9mm |
| Length | 1, 2, 3, 5, 10 ,20,50 meter or customized |
| Jacket | PVC, LSZH |
Our advantages:
1.Good reply: Your inquiry related to our products or price will be
replied within 24 hours.
2.OEM&ODM: We can help you to design or put your logo and
company name into products.
3.Remote Technical support&Full Technical Document
4.Warranty: 1 year warranty( While the warranty is not responsible
for those broken by violence or updated with other brands.)
5.English software, English Indicator
6.Professional, Very competitive price
7.Large Stock, Fast Delivery
8.Quality Assurance
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q4: What is your terms of payment ?
A4: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
Q5:Can I visit you?
A5:Sure,our factory is in Shenzhen ,China.Pliease contact us to
make an appointment.
Q6:Can I negotiate the prices?
A6:Yes,we may consider discounts for multiple container load of
mixed goods.
Q7:How much will the shipping charges be?
A7:It depends on the size of your shipment and the method of
shipping. We will offer the charge to you as you requested.
Q8. Can you produce according to the samples?
A8: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q9. What is your terms of packing?
A9: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent, we can pack the
goods in your branded boxes after getting your authorization
letters.
Q10. What is your terms of delivery?
A10: EXW, FOB, CFR, CIF, DDP.
Q11.How about the Warranty?
A11: There are 12 months for the warranty. While the warranty is
not responsible for those broken by violence or updated with other
brands
