FTTH Pigtail Fiber Optic Tools Fast Connector Ferrule Jig Polishing
Fixture
KEXINT FTTH SC/PC Patch Cord Pigtail Fast Connector Ferrule Fiber
Optic Polishing Jig Polishing Fixture

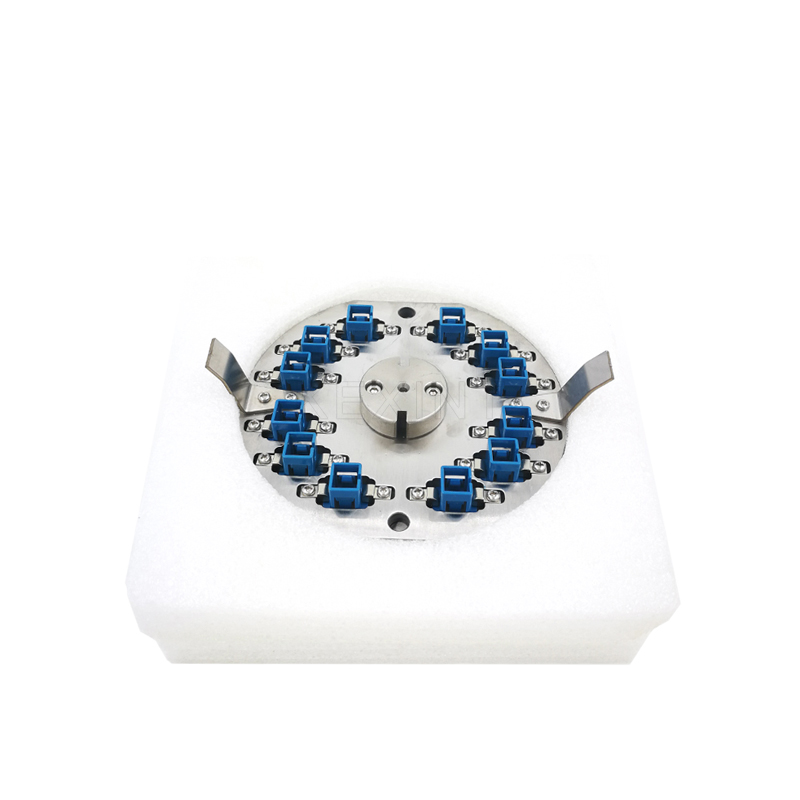

This Fiber polishing fixture using high quality steel with heated
treat, the hardened steel providing long service life. This fiber
polishing fixture can be designed with the jig of SC, FC, ST,
LC,and E2000, etc, and also according to the customer request.
The fiber polishing fixture pass rate with Interference> = 98%
.This fiber polishing fixture is high stability and good surface
quality.
Features :
1.Designed for SC/PC(UPC) connectors.
2.Easy to change jigs, simple and flexible to operate.
3.High efficiency, polishing Max 12 connectors in one cycle.The
first pass yield for end face quality reach 98%～100%
4.The fiber polishing fixture is IPC Structure, Independent
compression of each connector. The fiber polishing fixture pass
rate
with Interference> = 98% (100% Typical, according to IEC),
5.APC return loss ≥60dB , UPC return loss ≥55dB , Insertion loss
≤0.20dB ( typical)
6.The accessories on the fixture can be replaced, Greatly extend
the service life.
7.Fiber polishing fixture using high quality steel with heated
treat, the hardened steel S136 providing long service life. This
fiber polishing fixture can be designed with the jig of SC, FC, ST,
LC, etc, and also according to the customer request.
Our advantages:
1. Good reply: Your inquiry related to our products or price will
be replied within 24 hours.
2. OEM&ODM: We can help you to design or put your logo and
company name into products.
3. Remote Technical support&Full Technical Document
4.Warranty: 1 year warranty( While the warranty is not responsible
for those broken by violence or updated with other brands.)
5.English software, English Indicator
6. Professional, Very competitive price
7. Large Stock, Fast Delivery
Specification:
item | value | Model Number | SC/PC | Type | Fiber Optic Polishing Fixture | Place of Origin | China | | Guangdong | Brand Name | KEXINT | Use | Fiber optic SC PC connectors polishing | Warranty Time | 1year | Network | None | Dimensions | 110*5mm | Material | harden stainless steel | Weight | 0.5kg | No. of Fiber | 12 | 3D pass rate | 100% | Insertion Loss | ≤0.20 dB | Return Loss | ≥55 dB (PC) ≥60 dB (APC) | Certification | CE/ROHS/ISO9001 | Operating temperature | -40℃~85℃ |
| |
