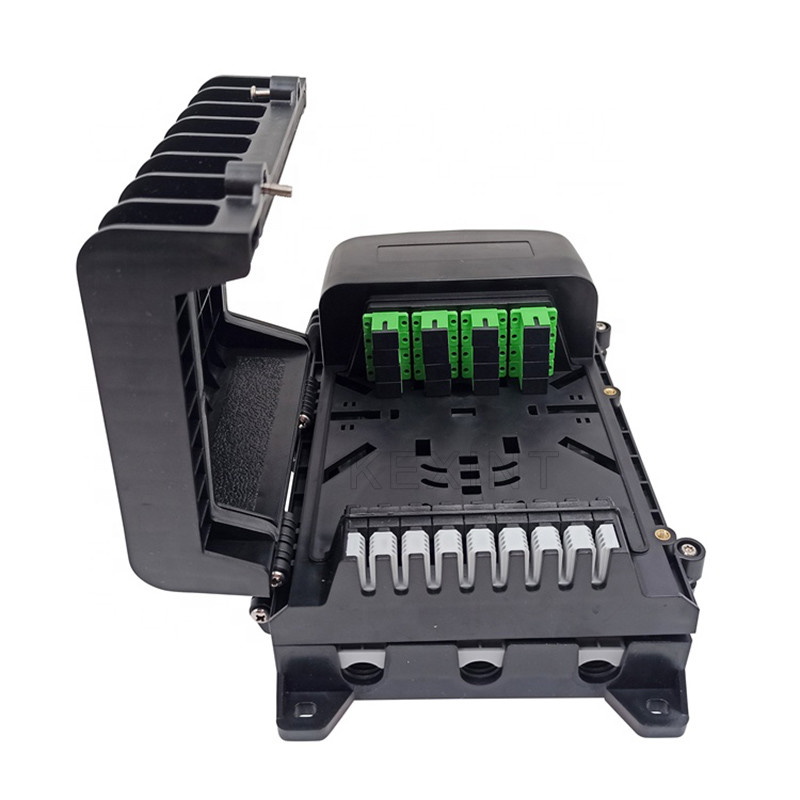

Pole Mounted Fiber Optic Distribution Box SC 16 Cores Or LC 32
Cores Adapter
Products Description
New type Fibre Distribution Box is used as a termination point for
the feeder cable to connect with drop cable in the FTTx
communication network system. The fiber splicing, splitting,
distribution can be done in this Fibre Distribution Box, and
meanwhile, Fibre Distribution Box provides solid protection and
management for the FTTx network building.
Specification:
| Capacity | 32 Cores, 16 port SC/LC |
| PLC Splitter | 1*16Splitter |
| Dimension(HxWxD) | 28x19x9.5CM |
| Cable Ports | 3 In 8 Out |
| Cable Diameter | Inlet Cable: 3 Ports Φ10~Φ16mm Outlet Cable: 8 Ports 2*3~Φ5 |
| Sealing Structure | Mechanical Sealing |
| Installation | Wall-mounted |
| Material | Strengthen Polymer Plastic |
| Weight | 2.5Kgs |
| Installation Size | 265X134mm (DxE) |
| Protection Level | IP68 |
Features:
1. Material: PP, wet-proof, water-proof, dust-proof, anti-aging,
protection level up to IP68.
2. adopts a total enclosed structure.
3. Clamping for feeder cable and drop cable, fiber splicing,
fixation, storage, distribution...etc all in one.
4. Cable, pigtails, patch cords are running through own path
without disturbing each other, cassette type SC/LC adaptor
installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed
by expression port, easy for maintenance and installation.
6. Cabinet can be installed by the way of wall-mounted or
poled-mounted, suitable for both indoor and outdoor uses.
Application:
CATV networks
Optical fiber communication
FTTX
Fiber optic network convergence
Optical fiber access network
Widely used in FTTH access network
Telecommunication networks
Data communications networks
Local area networks
Aerial, Direct buried, underground, pipeline, hand-holes, duct
mounting, wall mounting.
