KEXINT Fiber Optic Tools Plastic Coasted Fiberglass Duct Rodder
KEXINT 5mm 6mm 8mm 9mm 10mm 12mm 14mm 16mm 100m 200m 300m 500m
Fiberglass Duct Rodder
Great rigidity Fiberglass Push Pull, FRP duct rodder, Cable duct
rodder is selected as a special tool for pulling electric cables
and optical fiber cables in telecom, power industries, buildings
and many other fileds.The rod is made from fiberglass and high
strength resin at high temperature, it is coated by high density
polyethylene engineering plastic as its protected layer, which
makes the duct rodder cover sliding on surface,durable, corrosion
resistant and has very good insulation performance, these make it
safe for using in cable occupied duct.
Our duct rodders are exported with good quality and competitive
price all over the world. Various sizes of duct rodders are on
sale. Diameter is from 4mm to 16mm.length is 30m to 500m. Various
colors of conduit rodders are offered. Colors are diversified, such
as yellow, white, blue, red, black, etc. Because of doing business
of integrity, we have won many long-cooperated customers.
The diameter of frp duct rodder can be
4.5mm,6mm,8mm,9mm,10mm,11mm,12mm,13mm,14mm,15mm,16mm
The length of frp duct rodder can be 30-500m as your requirments,
The color of frp duct rodder can be white,yellow,red,blue as your
demends.

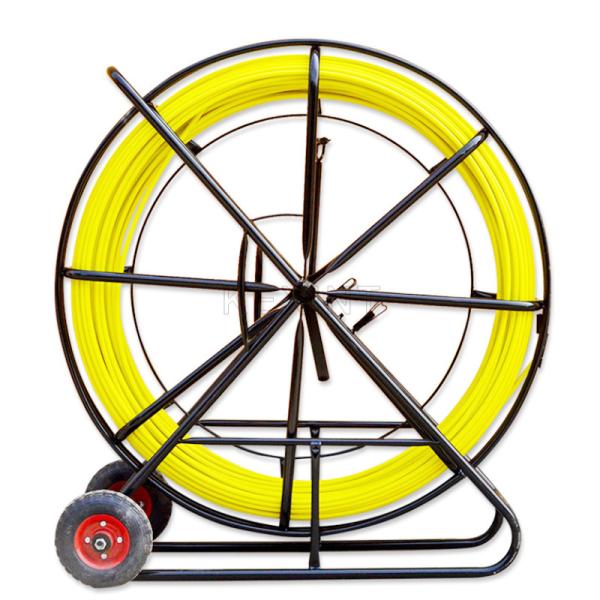

Frame specification and feature:
1. Welded by high-quality steel,sturdy and durable ,with good
compression resistance capaicty and proper structure ,is able to
keep its shape under the pressure of 10KM.
2. Smooth and uniform welding,firm solder joints,no incomplete and
lack of welding slag,the whole frame will be polished after
welding.
3. Equipped with brake device or without brake device.
4. Tilting type handle ,which is convenient for pushing and pulling
when you need to move the frame to the direction where your body is
,to push the frame .Using the wheels on the bottom of the frame for
supporting to make the moving easily.
5. There is a roller and a ring on the top side and bottom silde of
the frame respecitively.both of them are usded for the convenience
of duct rodder going through ,and protect the protect cover from
being scracthed.
Specs of fiberglass duct rodder,push pull rod.
Item | Value | Model specification | 4.5mm,6mm,8mm,10mm,11mm,12mm,13mm,14mm,15mm,16mm | Length | 30,50,60,80,100,120,150,180,200,250,300,350,400,450,500 meters | Material | Fiberglass (inner) and ABS resin(outer) | Density | >1.9gr/cm3 | Working temperature | - 40 to + 80 | Minimum pulling strength | 4000 N±5% | Tensile Modulus | >46.500Mpa | Consistency of rod | 137gr/m | Flexural Modulus | >46.500Mpa | Elongation at Break | 2.5-3% | Min. Bending Radius | 388m | Tensile Strength | >15N/mm2 | Environmental Stress & Crack Resistance | >1000hr |
|
