Fiber Optic Drop Cable G652D G657A1 G657A2 Armoured Customized Color

Product Categories

SHENZHEN KXIND COMMUNICATIONS CO.,LTD

Contact Now

Fiber Optic Drop Cable G652D G657A1 G657A2 Armoured Customized Color

Ask Lasest Price
Brand Name :	KEXINT
Model Number :	GJYXCH
Certification :	CE/ROHS/ISO9001
Price :	10 - 49 kilometers $42.6 ; 50 - 99 kilometers $38.8 ; >= 100 kilometers $35.6
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000000 meters per Week
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

Fiber Optic Drop Cable G652D G657A1 G657A2 Armoured Customized Color

G652D G657A1 G657A2 Fiber Optic Drop Cable Armoured Customized Color

Fiber Optic Drop Cable KEXINT FTTH Indoor/Outdoor GJYXCH 1/2/4 Cores G657A1 Steel Wire Or FRP Black Cable With PVC/LSZH

Product Description

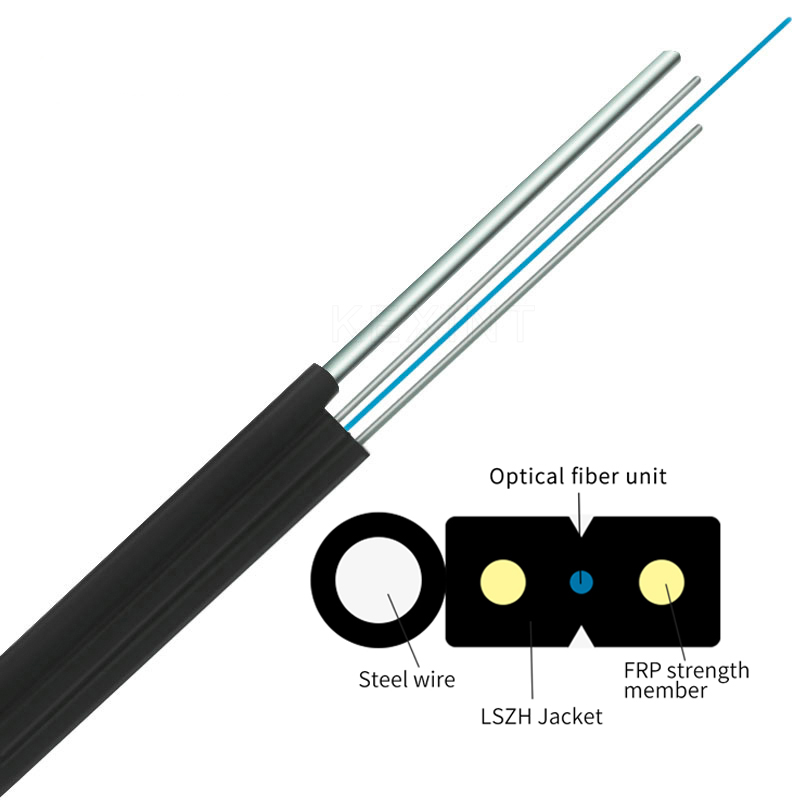

FTTH outdoor drop cable GJYXCH is also called self-supporting butterfly drop optical cable with a indoor butterfly cable and an additional strength member. 1-12 fiber cores. It is for outdoor communication applications. LSZH sheath is extruded outside for application of fiber to the home.

Characteristic:
1. Special low-bend -sensitivity fiber provides high bandwidth and excellent communication transmission property
2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3. Single steel wire or massagers as the additional strength member ensures good performance of tensile strength .
4. Simple structure , light weight and high practicability
5. special flute desigh , easily strip and splice , simplify the installation and maintenance
6. Low smoke , zero halogen and flame retardant sheath

Application:

* Adopted to outdoor level and vertical distribution

* Suitable for connect with communication equipment.

* Long distance and local area network communication.

FIBER	OD (MM)	Weight(KG.km)	Tensile(N)		Bending(mm)		Temperature
1-4Indoor	2.0 X 5.0	20	130	50	30	50	-40° to +70° C
1-4 Outdoor	2.0 X 3.0	8	40	20	30	50	-40° to +70° C

Specification

item	value
Model Number	GJYXCH
Type	Fiber Optic Cable
Brand Name	KEXINT
Color	Black /White /Customized
Fiber count	1/2/4 Cores
hanging wire	Steel wire/Strand
Strength member	Steel Wire /FRP
Outer sheath	PVC/LSZH
Fiber Type	G652D/G657A1/G657A2
Fiber brand	YOFC/CORNING
Certification	CE/ROHS/ISO9001
Warranty	1 Year
Operating temperature	-40℃~85℃

Packing & Delivery

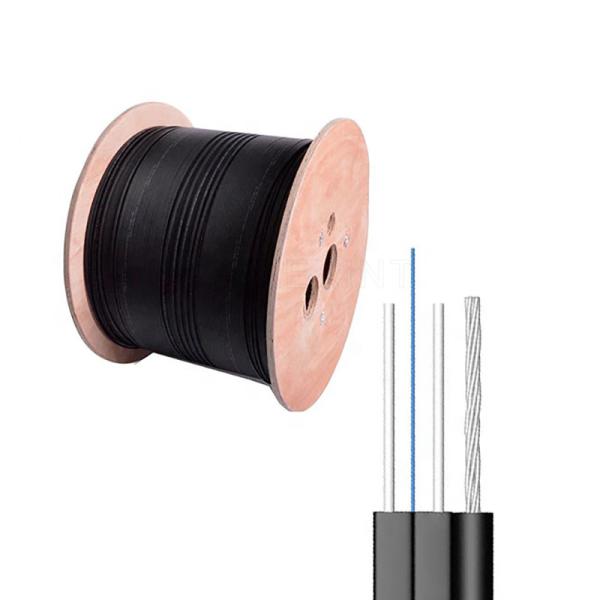

Wooden Drum/Customized

Our advantages:

1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.

2.OEM&ODM: We can help you to design or put your logo and company name into products.

3.Remote Technical support&Full Technical Document

4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

5.English software, English Indicator

6.Professional, Very competitive price

7.Large Stock, Fast Delivery

8.Quality Assurance
