KEXINT GJFDKBV 12 Core G657A1 Fiber Indoor Flat Ribbon Fiber Optical Cable

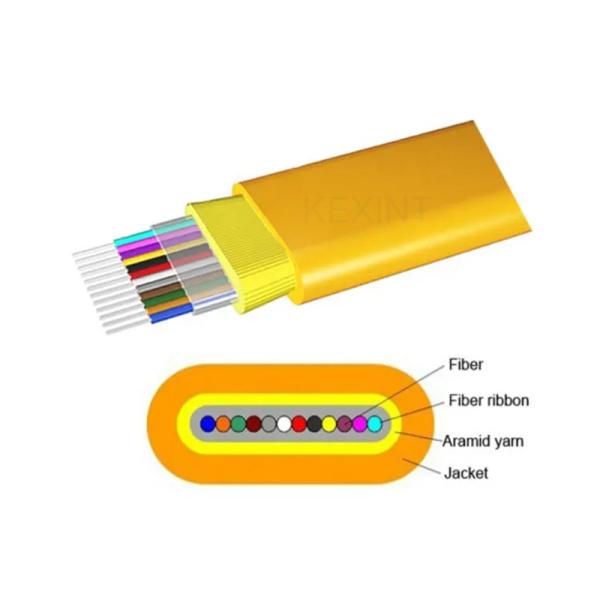

GJFDKBV flat fiber ribbon cable use fiber ribbon as optical communication medium,the fibre ribbon wrapped with a layer of aramid yarn as strength member units,and the cable is completed with a flat PVC or LSZH(Low smoke,Zero halogen,Flame-retardant) jacket. Characteristics:

1. Aramid yarn as strength member make cable have excellent tensible strength

2. Compact structure with high fibre density,good performance of flexibility and crush resistance

3. The jacket anti-corrosion,anti-water,anti-ultraviolet radiation,flame-retardant and harmless to environment etc.

4. All dielectric structure protect it form electromagnetic influence

5. Scientific design with serious processing art

Applications:

1. Ribbon optical fibre jumper and pigtail

2. Indoor cable distribution for any purpose

3. Interconnect between optical fibre cable distribution equipment

Construction Data:

Fiber color	1. Blue 2. Orange 3. Green 4. Brown 5. Grey 6. White 7. Red 8. Black 9 Yellow 10. Violet 11. Pink 12. Aqual
Core reinforce	Aramid yarn
Out jacket material	PVC

Technical Data-Physical:

Fiber count	4	6	8	12
Cable diameter (mm)	3.7x2.5	4.2x2.5	4.7x2.5	5.2x2.5
Cable weight (kg/km)	4.7	5.1	5.5	5.9
Temperature rating	0 ~+60℃
Operation storage	-5~+60℃

Specification

item	value
Model Number	GJFDKBV
Type	Indoor Fiber Cable
Place of Origin	China
	Guangdong
Brand Name	KEXINT
Number of Conductors	≥ 10
fiber cores	12
Fiber Type	single mode and multi mode
Out sheath	PE, PVC, LSZH
Color	Yellow or customized
Conductor Material	non-metal member
Package	wooden drum
MOQ	1KM
Aramid yarn	Yes
OEM	Available
Certification	ISO9001.ROSH.UL329006

KEXINT GJFDKBV 12 Core G657A1 Fiber Indoor Flat Ribbon Fiber Optical Cable
